The shared abstract frontend for SDR devices only. More...

#include <AbstractSDRFrontEnd.hxx>

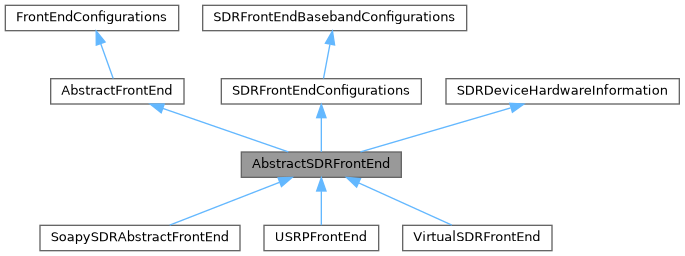

Inheritance diagram for AbstractSDRFrontEnd:

[legend]

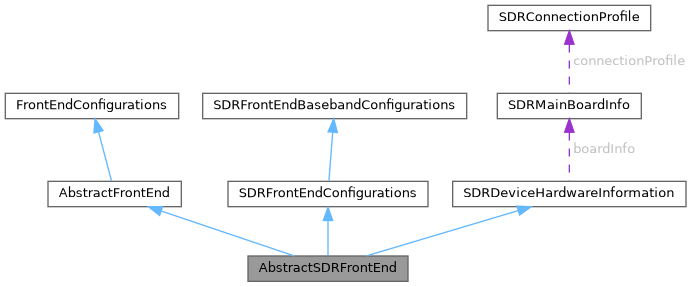

Collaboration diagram for AbstractSDRFrontEnd:

[legend]

Public Member Functions
	AbstractSDRFrontEnd (const std::string &referredInterfaceName)
	Create AbstractSDRFrontEnd object according to the user-specified frontend name `referredInterfaceName`.

virtual CS16Vector	generateSignal (const ModularPicoScenesTxFrame &frame, uint8_t numTxAntenna)=0
	Generate the baseband signal for ModularPicoScenesTxFrame `frame` with an optional `numTxAntenna` specifying the number of Tx antennas (or channels)

virtual std::vector< CS16Vector >	generateMultiChannelSignals (const ModularPicoScenesTxFrame &frame, const uint8_t numTxAntenna)
	Generate the baseband signal via AbstractSDRFrontEnd::generateSignal, convert to `SignalType` type, and return in multi-channel format.

virtual void	prebuildSignals (ModularPicoScenesTxFrame &frame, const uint8_t numTxAntenna)
	Generate the baseband signal via AbstractSDRFrontEnd::generateSignal and save the data into the prebuilt signals buffer of the Tx frame.

virtual int	transmitSignalsFromFile (const std::string &signalSourceFile, uint64_t repeat)=0
	Transmits baseband signals from a .bbsignals file.

virtual int32_t	transmitSignals (const std::vector< const void * > &signals, int64_t bufferLength, double postfixDuration)=0

virtual int	transmitSignalsContinuously (const std::vector< const void * > &multiChannelHeaders, int64_t numSignalsPerAntenna, bool burstStart, bool burstEnd)=0

int	transmit (const ModularPicoScenesTxFrame &frame) override
	Transmit a ModularPicoScenesTxFrame frame via current frontend hardware.

virtual size_t	transmitSignal (const CS16Vector &signals, const uint8_t numTxChannels, const double postfixDuration)

virtual size_t	transmitSignal (const std::vector< CS16Vector > &multiChannelSignals, const double postfixDuration)

virtual int32_t	transmitSignalInBatchedSingleBurst (const std::vector< std::vector< const void * > > &multipleSignals, const std::vector< int64_t > &signalLength, const std::vector< double > &postfixDurations, uint32_t repeat)=0

int	transmitFramesInBatch (const std::vector< const ModularPicoScenesTxFrame * > &frames, const uint32_t repeat) override
	Transmit frames in batch with precise inter-frame timing.

template<int repeat = 1, typename... Frames, typename = std::enable_if_t<(std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame*> && ...) \|\| (std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame> && ...) \|\| ((std::is_same_v<std::remove_cvref_t<Frames>, std::shared_ptr<ModularPicoScenesTxFrame>> \|\| std::is_same_v<std::remove_cvref_t<Frames>, std::unique_ptr<ModularPicoScenesTxFrame>>) && ...)>>
int	transmitFramesInBatch (Frames &&... frames)

virtual std::optional< double >	getCurrentNoiseFloor ()=0

virtual SDRFrontEndTxStatus	getLastTxStatus () const =0

virtual void	clearTxStatus ()=0

void	setTxSignalDumpFilePath (const std::string &txSignalDumpFilePathV)

void	setRxSignalDumpFilePath (const std::string &rxSignalDumpFilePathV)

void	setRxSignalDumpDelayedStartDuration (const double delayedStartDuration)

void	setSignalReplayFilePath (const std::string &signalReplayFilePath)

void	setTxSignalReplayDelayMs (const std::optional< uint32_t > &txSignalReplayDelayMs)

ChannelBandwidthEnum	getRxChannelBandwidthMode () override
	Get the current channel bandwidth mode for Rx.

void	setRxChannelBandwidthMode (ChannelBandwidthEnum rxCbw) override
	Set the channel bandwidth mode for Rx.

void	setTxIQMismatch (double iq_ratio_db, double iq_crosstalk_degree) override
	Set I/Q mismatch parameters for Tx.

void	setRxIQMismatch (double iq_ratio_db, double iq_crosstalk_degree) override
	Set I/Q mismatch parameters for Rx.

double	getTxIqRatioDB () override
	Get the I/Q ratio for Tx in dB.

double	getTxIqCrossTalkDegree () override
	Get the I/Q crosstalk angle for Tx.

double	getRxIqRatioDB () override
	Get the I/Q ratio for Rx in dB.

double	getRxIqCrossTalkDegree () override
	Get the I/Q crosstalk angle for Rx.

double	getRxSensitivity () override
	Get the receiver sensitivity.

void	setRxSensitivity (const double rxSensitivityV) override
	Set the receiver sensitivity.

void	setCarrierFrequencyOffset4TxEncoding (double carrierFrequencyOffset) override
	Set the carrier frequency offset for Tx encoding.

std::optional< double >	getCarrierFrequencyOffset4TxEncoding () override
	Get the carrier frequency offset for Tx encoding.

void	setSamplingFrequencyOffset4TxEncoding (double samplingFrequencyOffset) override
	Set the sampling frequency offset for Tx encoding.

std::optional< double >	getSamplingFrequencyOffset4TxEncoding () override
	Get the sampling frequency offset for Tx encoding.

void	setCarrierFrequencyOffset4RxDecoding (double rxCarrierFrequencyOffsetV) override
	Set the carrier frequency offset for Rx decoding.

std::optional< double >	getCarrierFrequencyOffset4RxDecoding () override
	Get the carrier frequency offset for Rx decoding.

void	setSamplingFrequencyOffset4RxDecoding (double samplingFrequencyOffset) override
	Set the sampling frequency offset for Rx decoding.

std::optional< double >	getSamplingFrequencyOffset4RxDecoding () override
	Get the sampling frequency offset for Rx decoding.

double	getSamplingRate () override
	Get the baseband sampling rate.

void	setSamplingRate (double samplingRate) override
	set sampling rate (in Hz)

double	getTxResampleRatio () override
	Get the Tx resampling ratio.

void	setTxResampleRatio (double txResampleRatioV) override
	Set the Tx resampling ratio.

double	getRxResampleRatio () override
	Get the Rx resampling ratio.

bool	isRxResampleBypassFIR () override
	Check if FIR filter is bypassed in Rx resampling.

void	setRxResampleBypassFIR (const bool bypass) override
	Set whether to bypass FIR filter in Rx resampling.

bool	isTxSplitHighLow () override
	Check if high/low split is enabled for Tx.

void	setTxSplitHighLow (const bool split) override
	Set whether to split high/low for Tx.

bool	isRxMergeHighLow () override
	Check if high/low merge is enabled for Rx.

void	setRxMergeHighLow (const bool merge) override
	Set whether to merge high/low for Rx.

void	setRxResampleRatio (double rxResampleRatioV) override
	Set the Rx resampling ratio.

double	getRxOfdmSymbolOffset () override
	Get the Rx OFDM symbol offset.

void	setRxOfdmSymbolOffset (const double rxOfdmSymbolOffset) override
	Set the Rx OFDM symbol offset.

double	getNumSamplesSavedBeforeStart () override
	Get the number of samples saved before start.

void	getNumSamplesSavedBeforeStart (const double numSamplesSavedBeforeStartV) override
	Set the number of samples saved before start.

uint8_t	getTxChainMask () override
	Get the Tx chain mask.

void	setTxChainMask (const uint8_t txChainMask) override
	Set Tx chain mask. Setting Tx chain mask means to use only the selected Tx chain for signal transmission.

uint8_t	getRxChainMask () override
	Get Rx chain mask.

void	setRxChainMask (const uint8_t rxChainMask) override
	Set Rx chain mask. Setting Rx chain mask means to use only the selected Rx chains for signal reception.

const std::vector< size_t > &	userSpecifiedTxChannels () const override
	Get the list of user-specified Tx channels.

std::vector< size_t >	getTxChannels () override
	Get the numbers of the active Tx channels, starting from 0.

void	setTxChannels (const std::vector< size_t > &txChannelsN) override
	This methods is fundamentally.

const std::vector< size_t > &	userSpecifiedRxChannels () const override
	Get the list of user-specified Rx channels.

std::vector< size_t >	getRxChannels () override
	Get the number of the active Rx channels, starting from 0.

void	setRxChannels (const std::vector< size_t > &rxChannelsN) override
	Set the number of the active Rx channels, starting from 0.

bool	isFullDuplexEnabled () override
	Check if full duplex mode is enabled.

void	setFullDuplex (const bool enableFullDuplex) override
	Set full duplex mode.

SDRFrontEndTransferType	getTransferType () const override
	Get the current transfer type.

void	setTransferType (const SDRFrontEndTransferType transferTypeV) override
	Set the transfer type.

void	setNumThreads4RxDecoding (const uint8_t numThreads) override
	Set the number of threads for Rx decoding.

void	printStatus () override
	Print a status string to command line.

ExtraInfo	buildExtraInfo () override
	Build an ExtraInfo object describing the current frontend status.

std::tuple< double, double, double >	getChannelAndBandwidth () override
	Get the <contorlfreq-bandwidth-centerfreq> channel parameter.

int	setChannelAndBandwidth (double control, double bw, double center) override
	Set the <contorlfreq-bandwidth-centerfreq> channel parameter.

int	setChannelAndBandwidth (std::optional< double > control, std::optional< double > bw, std::optional< double > center) override
	Set the <contorlfreq-bandwidth-centerfreq> channel parameter, but with optional.

double	getCarrierFrequency () override
	Get the RF carrier frequency.

void	setCarrierFrequency (double carrierFrequency) override
	Get the RF carrier frequency.

double	getControlChannelFrequency () override
	Get the control channel frequency of <contorlfreq-bandwidth-centerfreq> channel parameter.

void	setControlChannelFrequency (double controlFrequency) override
	Get the control channel frequency of <contorlfreq-bandwidth-centerfreq> channel parameter.

double	getRxChannelBandwidth () override
	Get the 802.11 Channel Bandwidth parameter (20e6/40e6/80e6/160e6/320e6) of the Rx path.

void	setRxChannelBandwidth (double rxcbw) override
	Set the Rx channel bandwidth parameter of the <contorlfreq-bandwidth-centerfreq> channel parameters.

double	getTxpower () override
	get the transmission power (Tx power)

void	setTxpower (double txpower) override
	Set the Tx power (in dB)

double	getRxGain () override
	Get the total Rx gain. However, currently only QCA9300 and SDR frontend support this method.

void	setRxGain (double rxGain) override
	Set the total Rx gain. However, currently only QCA9300 and SDR frontend support this method.

void	setRxGain (double rxGain, uint8_t channel) override
	Set the Rx gain for the specified channel. However, currently only QCA9300 and SDR frontend support this method.

uint16_t	getChannelFlags () override
	Get the old ChannelFlags descriptor.

std::string	getClockSource () override
	Get the current clock source.

void	setClockSource (const std::string &clockSource) override
	Set the clock source.

void	setClockSources (const std::vector< std::string > &clockSources) override
	Set clock sources for multiple motherboards.

std::vector< std::string >	getClockSources () override
	Get list of current clock sources.

std::string	getTimeSource () override
	Get the current time source.

void	setTimeSource (const std::string &timeSource) override
	Set the time source.

void	setTimeSources (const std::vector< std::string > &timeSources) override
	Set time sources for multiple motherboards.

std::vector< std::string >	getTimeSources () override
	Get list of current time sources.

double	getMasterClockRate () override
	Get the master clock rate.

void	setMasterClockRate (double masterClockRate) override
	Set the master clock rate.

double	getSDRFrontEndTime () override
	Get the current SDR hardware time.

std::string	getTxAntenna () override
	Get the current Tx antenna.

void	setTxAntenna (const std::string &txAnt) override
	Set the Tx antenna.

std::string	getRxAntenna () override
	Get the current Rx antenna.

void	setRxAntenna (const std::string &rxAnt) override
	Set the Rx antenna.

std::vector< std::string >	getTxAntennas () override
	Get list of available Tx antennas.

void	setTxAntennas (const std::vector< std::string > &txAnts) override
	Set antennas for all Tx chains.

std::vector< std::string >	getRxAntennas () override
	Get list of available Rx antennas.

void	setRxAntennas (const std::vector< std::string > &rxAnts) override
	Set antennas for all Rx chains.

double	getFilterBandwidth () override
	Get the current filter bandwidth.

void	setFilterBandwidth (double bw) override
	Set the filter bandwidth.

void	setRxPipelineChannels (std::vector< std::vector< size_t > > PipelineChannels) override

std::vector< std::vector< size_t > >	getRxPipelineChannels () override

void	setPinelineConfig (std::vector< PipelineConfig > cfgs) override

std::vector< PipelineConfig >	getPinelineConfig () override

Public Member Functions inherited from AbstractFrontEnd
	AbstractFrontEnd (const std::string &referredInterfaceName)
	Create AbstractFrontEnd object according to the user-specified frontend name `referredInterfaceName`.

virtual int	startTx ()
	Activate internal Tx service loop.

virtual int	stopTx ()
	De-activate Tx service loop.

virtual bool	isTxServiceStarted () const
	Returns whether Tx service is started.

virtual int	pauseTx ()
	Pause Tx service loop.

virtual int	resumeTx ()
	Resume Tx service loop.

virtual int	transmitFramesInBatch (const std::vector< ModularPicoScenesTxFrame > &frames, const uint32_t repeat)

template<int repeat = 1, typename ... Frames, typename = std::enable_if_t<(std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame *> &&...) \|\| (std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame> &&...) \|\| ((std::is_same_v<std::remove_cvref_t<Frames>, std::shared_ptr<ModularPicoScenesTxFrame>> \|\| std::is_same_v<std::remove_cvref_t<Frames>, std::unique_ptr<ModularPicoScenesTxFrame>>) &&...)>>
int	transmitFramesInBatch (Frames &&... frames)

virtual int	startRx ()=0
	Activiate the Rx service loop.

virtual int	stopRx ()=0
	De-activate the Rx service loop, set rxServiceStarted to false.

virtual int	pauseRx ()
	Pause the Rx service loop, set rxPaused to true.

virtual int	resumeRx ()
	Resuase the paused Rx service loop, set rxPaused to false.

void	registerRxHandle (const std::function< void(const ModularPicoScenesRxFrame &)> &rxHandle)
	Register a handler for the received ModularPicoScenesRxFrame frames.

const std::string &	getReferredInterfaceName () const
	Get the user-specified frontend name.

void	setReferredInterfaceName (const std::string &name)
	Set the user-specified frontend name.

const std::string &	getPhyId () const
	Return the PhyId for NIC frontend. This is a undefined behavior for SDR frontend.

PicoScenesDeviceType	getFrontEndType () const
	Return the PicoScenesDeviceType of this frontend.

PicoScenesDeviceSubtype	getFrontEndSubtype () const
	Return the PicoScenesDeviceType subtype of this frontend.

const std::array< uint8_t, 6 > &	getMacAddressPhy () const
	Return the MAC address of this frontend. For SDR frontend, this method should generate a pseudo-MAC address.

PicoScenesFrameTxParameters &	getUserSpecifiedTxParameters ()

ModularPicoScenesTxFrame	initializeTxFrame () override

virtual	~AbstractFrontEnd ()=default

Public Member Functions inherited from FrontEndConfigurations
virtual	~FrontEndConfigurations ()=default

virtual bool	isHardwareSupportedPreset (const std::string &presetName)=0
	Check if a preset configuration is supported by the hardware.

virtual void	applyPreset (const std::string &presetName, bool skipChangeRate=false)=0
	Apply a preset configuration to the frontend hardware.

void	setNumTxChannels (const uint8_t numTxChannels)
	Set the number of Tx channels, the active channels start from 0.

void	setNumRxChannels (const uint8_t numRxChannels)
	Set the number of Rx channels, the active channels start from 0.

std::vector< size_t >	getAllChannels ()

virtual void	setSourceMACAddressFilter (const std::vector< std::array< uint8_t, 6 > > &addresses)
	Set the SOURCE addresses that will be blocked by the frontend.

virtual void	setDestinationMACAddressFilter (const std::vector< std::array< uint8_t, 6 > > &addresses)
	Set the DESTINATION addresses that will be blocked by the frontend.

virtual uint16_t	getAndIncreasePerFrontEndTxFrameSequenceNumber ()

Public Member Functions inherited from SDRFrontEndConfigurations
virtual void	initializeSDR ()=0
	Initialize the SDR hardware.

virtual void	setTxCarrierFrequencies (std::vector< double > carrierFreqs)=0
	Set carrier frequencies for Tx channels.

virtual void	setRxCarrierFrequencies (std::vector< double > carrierFreqs)=0
	Set carrier frequencies for Rx channels.

virtual std::vector< double >	getTxCarrierFrequencies ()=0
	Get carrier frequencies for Tx channels.

virtual std::vector< double >	getRxCarrierFrequencies ()=0
	Get carrier frequencies for Rx channels.

virtual void	setTxSamplingRate (double txRate)=0
	Set the Tx sampling rate.

virtual void	setRxSamplingRate (double rxRate)=0
	Set the Rx sampling rate.

virtual double	getTxSamplingRate ()=0
	Get the current Tx sampling rate.

virtual double	getRxSamplingRate ()=0
	Get the current Rx sampling rate.

virtual bool	supportAGC ()=0
	Check if AGC is supported.

virtual void	setAGC (bool enableAGC)=0
	Enable or disable AGC.

virtual double	getRxBufferDuration () const =0
	Get the Rx buffer duration.

virtual void	skipMPDUDecoding4HESUHighDopplerFrame (bool skipDataDecoding)=0
	Set whether to skip MPDU decoding for HE-SU high Doppler frames.

Public Member Functions inherited from SDRFrontEndBasebandConfigurations
virtual	~SDRFrontEndBasebandConfigurations ()=default

virtual bool	isReturnBasebandSignals () const =0
	Check if baseband signals should be returned.

virtual bool	useConventionalPacketDetector () const =0
	Check if conventional packet detector should be used.

Public Member Functions inherited from SDRDeviceHardwareInformation
virtual std::vector< SDRMainBoardInfo >	getAllHardwareBoards (bool refresh=false)
	Get all hardware boards information.

virtual const SDRMainBoardInfo &	getHardwareBoardByIndex (size_t boardIndex, bool refresh=false)
	Get information for a specific board.

virtual size_t	getHardwareBoardCount (bool refresh=false)
	Get total number of hardware boards.

virtual const SDRMainBoardInfo &	getHardwareBoardInfo (bool refresh=false)
	Get main hardware board information.

virtual const std::vector< uint8_t > &	getHardwareSupportedTxChannels (bool refresh=false)
	Get supported Tx channels.

virtual const std::vector< uint8_t > &	getHardwareSupportedRxChannels (bool refresh=false)
	Get supported Rx channels.

virtual const std::vector< std::string > &	getHardwareSupportedTxAntennas (uint8_t channel, bool refresh=false)
	Get supported Tx antennas for a specific channel.

virtual const std::vector< std::string > &	getHardwareSupportedRxAntennas (uint8_t channel, bool refresh=false)
	Get supported Rx antennas for a specific channel.

virtual const std::vector< std::vector< std::string > > &	getHardwareSupportedTxAntennas (bool refresh=false)
	Get all supported Tx antennas.

virtual const std::vector< std::vector< std::string > > &	getHardwareSupportedRxAntennas (bool refresh=false)
	Get all supported Rx antennas.

virtual const std::pair< double, double > &	getHardwareTxGainRange (uint8_t channel, bool refresh=false)
	Get Tx gain range for a specific channel.

virtual const std::pair< double, double > &	getHardwareRxGainRange (uint8_t channel, bool refresh=false)
	Get Rx gain range for a specific channel.

virtual const std::vector< std::pair< double, double > > &	getHardwareTxGainRanges (bool refresh=false)
	Get all Tx gain ranges.

virtual const std::vector< std::pair< double, double > > &	getHardwareRxGainRanges (bool refresh=false)
	Get all Rx gain ranges.

virtual const std::pair< double, double > &	getHardwareTxFrequencyRange (uint8_t channel, bool refresh=false)
	Get Tx frequency range for a specific channel.

virtual const std::pair< double, double > &	getHardwareRxFrequencyRange (uint8_t channel, bool refresh=false)
	Get Rx frequency range for a specific channel.

virtual const std::vector< std::pair< double, double > > &	getHardwareTxFrequencyRanges (bool refresh=false)
	Get all Tx frequency ranges.

virtual const std::vector< std::pair< double, double > > &	getHardwareRxFrequencyRanges (bool refresh=false)
	Get all Rx frequency ranges.

virtual const std::pair< double, double > &	getHardwareTxSamplingRateRange (uint8_t channel, bool refresh=false)
	Get Tx sampling rate range for a specific channel.

virtual const std::pair< double, double > &	getHardwareRxSamplingRateRange (uint8_t channel, bool refresh=false)
	Get Rx sampling rate range for a specific channel.

virtual const std::vector< std::pair< double, double > > &	getHardwareTxSamplingRateRanges (bool refresh=false)
	Get all Tx sampling rate ranges.

virtual const std::vector< std::pair< double, double > > &	getHardwareRxSamplingRateRanges (bool refresh=false)
	Get all Rx sampling rate ranges.

virtual const std::vector< double > &	getHardwareSupportedMasterClockRates (bool refresh=false)
	Get supported master clock rates.

virtual const std::vector< std::string > &	getHardwareSupportedClockAndTimeSources (bool refresh=false)
	Get supported clock and time sources.

virtual const std::vector< std::string > &	getHardwareSupportedSensors (uint8_t channel, bool refresh=false)
	Get supported sensors for a specific channel.

virtual const std::vector< std::vector< std::string > > &	getAllHardwareSupportedSensors (bool refresh=false)
	Get all supported sensors.

virtual const std::vector< double > &	getHardwareTemperatures (bool refresh=false)
	Get temperature readings.

virtual bool	getHardwareAGCSupport (uint8_t channel, bool refresh=false)
	Get AGC support for a specific channel.

virtual const std::vector< bool > &	getHardwareAGCSupport (bool refresh=false)
	Get AGC support for all channels.

virtual const std::shared_ptr< SDRFrontEndProfile > &	getHardwareFrontEndProfile (uint8_t channel, bool refresh=false)
	Get frontend profile for a specific channel.

virtual const std::vector< std::shared_ptr< SDRFrontEndProfile > > &	getHardwareFrontEndProfiles (bool refresh=false)
	Get all frontend profiles.

virtual const SDRDaughterboardProfile &	getHardwareDaughterboardProfile (size_t index, bool refresh=false)
	Get daughterboard profile at specific index.

virtual const std::vector< SDRDaughterboardProfile > &	getHardwareDaughterboardProfiles (bool refresh=false)
	Get all daughterboard profiles.

virtual void	refreshAllHardwareInfo ()
	Refresh all hardware information.

std::string	hardwareInformationSheet ()
	Generate a formatted information sheet about the hardware.

virtual	~SDRDeviceHardwareInformation ()=default

Protected Member Functions
void	refreshHardwareInfoForSupportedChannels () override
	Refresh supported channels information.

void	refreshHardwareInfoForBoards () override
	Refresh boards information.

void	refreshHardwareInfoForSupportedAntennas () override
	Refresh supported antennas information.

void	refreshHardwareInfoForGainRanges () override
	Refresh gain ranges information.

void	refreshHardwareInfoForFrequencyRanges () override
	Refresh frequency ranges information.

void	refreshHardwareInfoForSamplingRateRanges () override
	Refresh sampling rate ranges information.

void	refreshHardwareInfoForMasterClockRates () override
	Refresh master clock rates information.

void	refreshHardwareInfoForClockAndTimeSources () override
	Refresh clock and time sources information.

void	refreshHardwareInfoForSensors () override
	Refresh sensors information.

void	refreshHardwareInfoForTemperatures () override
	Refresh temperature readings.

void	refreshHardwareInfoForAGCSupport () override
	Refresh AGC support information.

void	refreshHardwareInfoForFrontEndProfiles () override
	Refresh frontend profiles information.

Protected Member Functions inherited from SDRDeviceHardwareInformation
virtual void	refreshHardwareInfoForConnectionProfile ()
	Refresh connection profile information.

Protected Attributes
std::optional< uint32_t >	txSignalReplayDelay_ms

std::optional< std::string >	txSignalDumpFilePath

std::optional< std::string >	rxSignalDumpFilePath

std::optional< double >	rxSignalDumpDelayedStartDuration

std::optional< std::string >	rxSignalReplayFilePath

bool	fullDuplex {false}

uint8_t	numDecodingThreads {1}

SDRFrontEndTransferType	transferType {SDRFrontEndTransferType::CS16}

std::vector< size_t >	txChannels {}

std::vector< size_t >	rxChannels {}

std::vector< std::vector< size_t > >	rxPipelineChannels {}

std::vector< PipelineConfig >	rxPipelineConfigs {}

ChannelBandwidthEnum	rxCBW {ChannelBandwidthEnum::CBW_20}

double	rxResampleRatio {1.0}

bool	rxResampleBypassFIR {false}

bool	mergeHighLow {false}

double	rxOFDMSymbolOffset {0.75}

double	numSamplesSavedBeforeStart {5}

double	rxSensitivity {10}

double	rxIQMismatchRatioDb {0}

double	rxIQMismatchRatioDegree {0}

std::optional< double >	rxCarrierFrequencyOffset {}

std::optional< double >	rxSamplingFrequencyOffset {}

Protected Attributes inherited from AbstractFrontEnd
std::string	referredInterfaceName
	the user specified frontend name

std::string	phyId
	phyId

std::array< uint8_t, 6 >	macAddress_PHY {0, 0, 0, 0, 0, 0}
	macAddress of the frontend

PicoScenesDeviceType	frontEndType = PicoScenesDeviceType::Unknown
	frontend type

PicoScenesDeviceSubtype	frontEndSubtype = PicoScenesDeviceSubtype::Unknown
	frontend subtype

bool	txServiceStarted = false
	indicate whether Tx service is running

PicoScenesFrameTxParameters	userSpecifiedTxParameters
	user-specified Tx parameters

std::mutex	txPauseMutex

std::condition_variable	txPauseCV

bool	txPaused = false
	indicate whether Tx serivce is paused

std::function< void(const ModularPicoScenesRxFrame &)>	rxHandle = nullptr
	The Rx frame handler.

bool	rxPaused = false
	indicate whether Rx service loop is paused

bool	rxServiceStarted = false
	indicate whether Rx service loop is running

Protected Attributes inherited from FrontEndConfigurations
std::vector< std::array< uint8_t, 6 > >	sourceAddressFilterList
	the source addresses to be filtered

std::vector< std::array< uint8_t, 6 > >	destinationAddressFilterList
	the destination addressed to be filtered

uint16_t	currentTxSequenceNumber {0}
	current Tx sequence number

Protected Attributes inherited from SDRDeviceHardwareInformation
SDRMainBoardInfo	boardInfo

bool	boardInfoChanged {true}

std::vector< uint8_t >	supportedTxChannels {}

std::vector< uint8_t >	supportedRxChannels {}

bool	supportedChannelsChanged {true}

std::vector< SDRDaughterboardProfile >	daughterboardProfiles {}

std::vector< std::shared_ptr< SDRFrontEndProfile > >	frontendProfiles {}

bool	frontendProfilesChanged {true}

std::vector< std::vector< std::string > >	supportedTxAntennas {}

std::vector< std::vector< std::string > >	supportedRxAntennas {}

bool	supportedAntennasChanged {true}

bool	supportedAntennasMapChanged {true}

std::vector< std::pair< double, double > >	txGainRanges {}

std::vector< std::pair< double, double > >	rxGainRanges {}

bool	gainRangesChanged {true}

bool	gainRangesMapChanged {true}

std::vector< std::pair< double, double > >	txFrequencyRanges {}

std::vector< std::pair< double, double > >	rxFrequencyRanges {}

bool	frequencyRangesChanged {true}

bool	frequencyRangesMapChanged {true}

std::vector< std::pair< double, double > >	txSamplingRateRanges {}

std::vector< std::pair< double, double > >	rxSamplingRateRanges {}

bool	samplingRateRangesChanged {true}

bool	samplingRateRangesMapChanged {true}

std::vector< double >	supportedMasterClockRates {}

bool	masterClockRatesChanged {true}

std::vector< std::string >	supportedClockAndTimeSources {}

bool	clockAndTimeSourcesChanged {true}

std::vector< std::vector< std::string > >	supportedSensors {}

bool	sensorsChanged {true}

bool	sensorsMapChanged {true}

std::vector< double >	temperatureReadings {}

bool	temperaturesChanged {true}

std::vector< bool >	agcSupport {}

bool	agcSupportChanged {true}

bool	agcSupportMapChanged {true}

Detailed Description

The shared abstract frontend for SDR devices only.

Definition at line 25 of file AbstractSDRFrontEnd.hxx.

Constructor & Destructor Documentation

◆ AbstractSDRFrontEnd()

AbstractSDRFrontEnd::AbstractSDRFrontEnd ( const std::string & referredInterfaceName )

inlineexplicit

Create AbstractSDRFrontEnd object according to the user-specified frontend name referredInterfaceName.

Note: For plugin developers, all types of frontend should only be obtained via FrontEndFactory::getFrontEndInstance method. Developer should NEVER invoke this method of AbstractSDRFrontEnd or its subclasses directly!

Parameters

referredInterfaceName user supplied frontend name, e.g., usrp192.168.10.2 / 3 / hackrf0 / virtualsdr0

Definition at line 32 of file AbstractSDRFrontEnd.hxx.

Member Function Documentation

◆ buildExtraInfo()

ExtraInfo AbstractSDRFrontEnd::buildExtraInfo ( )

inlineoverridevirtual

Build an ExtraInfo object describing the current frontend status.

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 529 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ clearTxStatus()

virtual void AbstractSDRFrontEnd::clearTxStatus ( )

pure virtual

◆ generateMultiChannelSignals()

virtual std::vector< CS16Vector > AbstractSDRFrontEnd::generateMultiChannelSignals	(	const ModularPicoScenesTxFrame &	frame,
		const uint8_t	numTxAntenna
	)

inlinevirtual

Generate the baseband signal via AbstractSDRFrontEnd::generateSignal, convert to SignalType type, and return in multi-channel format.

Returns

Definition at line 48 of file AbstractSDRFrontEnd.hxx.

References Intrinsics::fastCopyN(), and generateSignal().

Referenced by prebuildSignals(), transmit(), and transmitFramesInBatch().

◆ generateSignal()

virtual CS16Vector AbstractSDRFrontEnd::generateSignal	(	const ModularPicoScenesTxFrame &	frame,
		uint8_t	numTxAntenna
	)

pure virtual

Generate the baseband signal for ModularPicoScenesTxFrame frame with an optional numTxAntenna specifying the number of Tx antennas (or channels)

Parameters

frame	the frame to have baseband signal generated
numTxAntenna	when this optional value is not supplied, the channels of baseband data equals to the size of getTxChannels, which is the number of channels of the SDR frontend; othersize, the supplied `numTxAntenna` overrides the hardware frontend number

Returns: the int16-complex type baseband signals. For the multi-antenna signal [N_{signal} x N_{channel}], the data is reshaped to a single-columned vector [N_{signal} x N_{channel}, 1].

Referenced by generateMultiChannelSignals().

◆ getCarrierFrequency()

double AbstractSDRFrontEnd::getCarrierFrequency ( )

inlineoverridevirtual

Get the RF carrier frequency.

Returns: the current RF carrier frequency

Implements FrontEndConfigurations.

Definition at line 546 of file AbstractSDRFrontEnd.hxx.

References SDRFrontEndConfigurations::getRxCarrierFrequencies(), SDRFrontEndConfigurations::getTxCarrierFrequencies(), userSpecifiedRxChannels(), and userSpecifiedTxChannels().

◆ getCarrierFrequencyOffset4RxDecoding()

std::optional< double > AbstractSDRFrontEnd::getCarrierFrequencyOffset4RxDecoding ( )

inlineoverridevirtual

Get the carrier frequency offset for Rx decoding.

Returns the carrier frequency offset used for received signal compensation

Returns: std::optional<double> Current Rx carrier frequency offset if set

Implements SDRFrontEndBasebandConfigurations.

Definition at line 335 of file AbstractSDRFrontEnd.hxx.

References rxCarrierFrequencyOffset.

Referenced by setCarrierFrequencyOffset4RxDecoding().

◆ getCarrierFrequencyOffset4TxEncoding()

std::optional< double > AbstractSDRFrontEnd::getCarrierFrequencyOffset4TxEncoding ( )

inlineoverridevirtual

Get the carrier frequency offset for Tx encoding.

Returns the deliberate carrier frequency offset added to transmitted signals

Returns: std::optional<double> Current Tx carrier frequency offset if set

Implements SDRFrontEndBasebandConfigurations.

Definition at line 317 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::userSpecifiedTxParameters.

Referenced by setCarrierFrequencyOffset4TxEncoding().

◆ getChannelAndBandwidth()

std::tuple< double, double, double > AbstractSDRFrontEnd::getChannelAndBandwidth ( )

inlineoverridevirtual

Get the <contorlfreq-bandwidth-centerfreq> channel parameter.

Note: The format of <contorlfreq-bandwidth-centerfreq> is the same as Linux iw command for 80/160 channel bandwidth case.

Returns: a tuple of three values (in Hz)

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 533 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getChannelFlags()

uint16_t AbstractSDRFrontEnd::getChannelFlags ( )

inlineoverridevirtual

Get the old ChannelFlags descriptor.

Deprecated:: This method is deprecated

Returns: the resulting channel flags

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 601 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getClockSource()

std::string AbstractSDRFrontEnd::getClockSource ( )

inlineoverridevirtual

Get the current clock source.

Returns: std::string Name of current clock source

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 605 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getClockSources()

std::vector< std::string > AbstractSDRFrontEnd::getClockSources ( )

inlineoverridevirtual

Get list of current clock sources.

Returns: std::vector<std::string> List of current clock source names

Implements SDRFrontEndConfigurations.

Definition at line 617 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getControlChannelFrequency()

double AbstractSDRFrontEnd::getControlChannelFrequency ( )

inlineoverridevirtual

Get the control channel frequency of <contorlfreq-bandwidth-centerfreq> channel parameter.

See also: getChannelAndBandwidth()

Returns

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 565 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getCurrentNoiseFloor()

virtual std::optional< double > AbstractSDRFrontEnd::getCurrentNoiseFloor ( )

pure virtual

◆ getFilterBandwidth()

double AbstractSDRFrontEnd::getFilterBandwidth ( )

inlineoverridevirtual

Get the current filter bandwidth.

Returns: double Current filter bandwidth in Hz

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 681 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getLastTxStatus()

virtual SDRFrontEndTxStatus AbstractSDRFrontEnd::getLastTxStatus ( ) const

pure virtual

Referenced by transmitFramesInBatch().

◆ getMasterClockRate()

double AbstractSDRFrontEnd::getMasterClockRate ( )

inlineoverridevirtual

Get the master clock rate.

Returns: double Current master clock rate in Hz

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 637 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getNumSamplesSavedBeforeStart() [1/2]

double AbstractSDRFrontEnd::getNumSamplesSavedBeforeStart ( )

inlineoverridevirtual

Get the number of samples saved before start.

Returns: double Number of samples saved before start

Implements SDRFrontEndBasebandConfigurations.

Definition at line 420 of file AbstractSDRFrontEnd.hxx.

References numSamplesSavedBeforeStart.

◆ getNumSamplesSavedBeforeStart() [2/2]

void AbstractSDRFrontEnd::getNumSamplesSavedBeforeStart ( const double numSamplesSavedBeforeStart )

inlineoverridevirtual

Set the number of samples saved before start.

Parameters

numSamplesSavedBeforeStart Desired number of samples

Implements SDRFrontEndBasebandConfigurations.

Definition at line 424 of file AbstractSDRFrontEnd.hxx.

References numSamplesSavedBeforeStart.

◆ getPinelineConfig()

std::vector< PipelineConfig > AbstractSDRFrontEnd::getPinelineConfig ( )

inlineoverridevirtual

Implements SDRFrontEndConfigurations.

Definition at line 701 of file AbstractSDRFrontEnd.hxx.

References rxPipelineConfigs.

◆ getRxAntenna()

std::string AbstractSDRFrontEnd::getRxAntenna ( )

inlineoverridevirtual

Get the current Rx antenna.

Returns: std::string Name of current Rx antenna

Implements SDRFrontEndConfigurations.

Definition at line 657 of file AbstractSDRFrontEnd.hxx.

References getRxAntennas().

◆ getRxAntennas()

std::vector< std::string > AbstractSDRFrontEnd::getRxAntennas ( )

inlineoverridevirtual

Get list of available Rx antennas.

Returns: std::vector<std::string> List of available Rx antenna names

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 673 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

Referenced by getRxAntenna().

◆ getRxChainMask()

uint8_t AbstractSDRFrontEnd::getRxChainMask ( )

inlineoverridevirtual

Get Rx chain mask.

0/1/2/3-bit for the 0/1/2/3-th radio chain. This method should be based on setTxChannels() internally for SDR frontend.

Returns

Implements FrontEndConfigurations.

Definition at line 446 of file AbstractSDRFrontEnd.hxx.

References userSpecifiedRxChannels().

Referenced by VirtualSDRFrontEnd::printStatus().

◆ getRxChannelBandwidth()

double AbstractSDRFrontEnd::getRxChannelBandwidth ( )

inlineoverridevirtual

Get the 802.11 Channel Bandwidth parameter (20e6/40e6/80e6/160e6/320e6) of the Rx path.

Note: This value does NOT necessarily equals to getSamplingRate(), because the latter is the actual working sampling rate.

Returns: For NIC, this value is the channel bandwidth of current Wi-Fi connection or the bandwidth that you specify via array_prepare_for_picoscenes script; for SDR, this value is the CBW20/40/80/160 Rx decoding parameter

Implements FrontEndConfigurations.

Definition at line 573 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getRxChannelBandwidthMode()

ChannelBandwidthEnum AbstractSDRFrontEnd::getRxChannelBandwidthMode ( )

inlineoverridevirtual

Get the current channel bandwidth mode for Rx.

Returns: ChannelBandwidthEnum Current Rx channel bandwidth mode

Implements SDRFrontEndBasebandConfigurations.

Definition at line 266 of file AbstractSDRFrontEnd.hxx.

References rxCBW.

Referenced by setRxChannelBandwidthMode().

◆ getRxChannels()

std::vector< size_t > AbstractSDRFrontEnd::getRxChannels ( )

inlineoverridevirtual

Get the number of the active Rx channels, starting from 0.

Returns: the number array

Implements FrontEndConfigurations.

Definition at line 489 of file AbstractSDRFrontEnd.hxx.

References rxChannels.

◆ getRxGain()

double AbstractSDRFrontEnd::getRxGain ( )

inlineoverridevirtual

Get the total Rx gain. However, currently only QCA9300 and SDR frontend support this method.

Returns: the Rx gain (in dB)

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 589 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getRxIqCrossTalkDegree()

double AbstractSDRFrontEnd::getRxIqCrossTalkDegree ( )

inlineoverridevirtual

Get the I/Q crosstalk angle for Rx.

Returns: double Current Rx I/Q crosstalk angle in degrees

Implements SDRFrontEndBasebandConfigurations.

Definition at line 299 of file AbstractSDRFrontEnd.hxx.

References rxIQMismatchRatioDegree.

Referenced by setRxIQMismatch().

◆ getRxIqRatioDB()

double AbstractSDRFrontEnd::getRxIqRatioDB ( )

inlineoverridevirtual

Get the I/Q ratio for Rx in dB.

Returns: double Current Rx I/Q ratio in dB

Implements SDRFrontEndBasebandConfigurations.

Definition at line 295 of file AbstractSDRFrontEnd.hxx.

References rxIQMismatchRatioDb.

Referenced by setRxIQMismatch().

◆ getRxOfdmSymbolOffset()

double AbstractSDRFrontEnd::getRxOfdmSymbolOffset ( )

inlineoverridevirtual

Get the Rx OFDM symbol offset.

Returns: double Current Rx OFDM symbol offset

Implements SDRFrontEndBasebandConfigurations.

Definition at line 411 of file AbstractSDRFrontEnd.hxx.

References rxOFDMSymbolOffset.

Referenced by setRxOfdmSymbolOffset().

◆ getRxPipelineChannels()

std::vector< std::vector< size_t > > AbstractSDRFrontEnd::getRxPipelineChannels ( )

inlineoverridevirtual

Implements SDRFrontEndConfigurations.

Definition at line 693 of file AbstractSDRFrontEnd.hxx.

References rxPipelineChannels.

◆ getRxResampleRatio()

double AbstractSDRFrontEnd::getRxResampleRatio ( )

inlineoverridevirtual

Get the Rx resampling ratio.

Returns: double Current Rx resampling ratio

Implements SDRFrontEndBasebandConfigurations.

Definition at line 375 of file AbstractSDRFrontEnd.hxx.

References rxResampleRatio.

Referenced by setRxResampleRatio().

◆ getRxSensitivity()

double AbstractSDRFrontEnd::getRxSensitivity ( )

inlineoverridevirtual

Get the receiver sensitivity.

Rx sensitivity (in dB) is the lowest threshold that can trigger power-level detection and subsequent packet detection. Higher sensitivity may reject more packets with low SNR, while lower sensitivity may accept more packets but with slower baseband processing rate.

Returns: double Current receiver sensitivity in dB

Implements SDRFrontEndBasebandConfigurations.

Definition at line 303 of file AbstractSDRFrontEnd.hxx.

References rxSensitivity.

Referenced by setRxSensitivity().

◆ getSamplingFrequencyOffset4RxDecoding()

std::optional< double > AbstractSDRFrontEnd::getSamplingFrequencyOffset4RxDecoding ( )

inlineoverridevirtual

Get the sampling frequency offset for Rx decoding.

Returns the sampling frequency offset used for received signal compensation

Returns: std::optional<double> Current Rx sampling frequency offset if set

Implements SDRFrontEndBasebandConfigurations.

Definition at line 344 of file AbstractSDRFrontEnd.hxx.

References rxSamplingFrequencyOffset.

Referenced by setSamplingFrequencyOffset4RxDecoding().

◆ getSamplingFrequencyOffset4TxEncoding()

std::optional< double > AbstractSDRFrontEnd::getSamplingFrequencyOffset4TxEncoding ( )

inlineoverridevirtual

Get the sampling frequency offset for Tx encoding.

Returns the deliberate sampling frequency offset added to transmitted signals

Returns: std::optional<double> Current Tx sampling frequency offset if set

Implements SDRFrontEndBasebandConfigurations.

Definition at line 326 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::userSpecifiedTxParameters.

Referenced by setSamplingFrequencyOffset4TxEncoding().

◆ getSamplingRate()

double AbstractSDRFrontEnd::getSamplingRate ( )

inlineoverridevirtual

Get the baseband sampling rate.

Returns: the working sampling rate (in Hz)

Implements FrontEndConfigurations.

Definition at line 348 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName(), SDRFrontEndConfigurations::getRxSamplingRate(), SDRFrontEndConfigurations::getTxSamplingRate(), and LoggingService_SDR_warning_print.

Referenced by VirtualSDRFrontEnd::printStatus().

◆ getSDRFrontEndTime()

double AbstractSDRFrontEnd::getSDRFrontEndTime ( )

inlineoverridevirtual

Get the current SDR hardware time.

Returns: double Current hardware time

Implements SDRFrontEndBasebandConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 645 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getTimeSource()

std::string AbstractSDRFrontEnd::getTimeSource ( )

inlineoverridevirtual

Get the current time source.

Returns: std::string Name of current time source

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 621 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getTimeSources()

std::vector< std::string > AbstractSDRFrontEnd::getTimeSources ( )

inlineoverridevirtual

Get list of current time sources.

Returns: std::vector<std::string> List of current time source names

Implements SDRFrontEndConfigurations.

Definition at line 633 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getTransferType()

SDRFrontEndTransferType AbstractSDRFrontEnd::getTransferType ( ) const

inlineoverridevirtual

Get the current transfer type.

Returns: SDRFrontEndTransferType Current transfer type

Implements SDRFrontEndConfigurations.

Definition at line 512 of file AbstractSDRFrontEnd.hxx.

References transferType.

◆ getTxAntenna()

std::string AbstractSDRFrontEnd::getTxAntenna ( )

inlineoverridevirtual

Get the current Tx antenna.

Returns: std::string Name of current Tx antenna

Implements SDRFrontEndConfigurations.

Definition at line 649 of file AbstractSDRFrontEnd.hxx.

References getTxAntennas().

◆ getTxAntennas()

std::vector< std::string > AbstractSDRFrontEnd::getTxAntennas ( )

inlineoverridevirtual

Get list of available Tx antennas.

Returns: std::vector<std::string> List of available Tx antenna names

Implements SDRFrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 665 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

Referenced by getTxAntenna().

◆ getTxChainMask()

uint8_t AbstractSDRFrontEnd::getTxChainMask ( )

inlineoverridevirtual

Get the Tx chain mask.

0/1/2/3-bit for the 0/1/2/3-th radio chain; 1 for active and 0 for inactive This method should be based on getTxChannels() internally for SDR frontend.

See also: getRxChainMask()

Returns: current tx chain mask

Implements FrontEndConfigurations.

Definition at line 428 of file AbstractSDRFrontEnd.hxx.

References userSpecifiedTxChannels().

Referenced by VirtualSDRFrontEnd::printStatus().

◆ getTxChannels()

std::vector< size_t > AbstractSDRFrontEnd::getTxChannels ( )

inlineoverridevirtual

Get the numbers of the active Tx channels, starting from 0.

Returns: the number array

Implements FrontEndConfigurations.

Definition at line 469 of file AbstractSDRFrontEnd.hxx.

References txChannels.

◆ getTxIqCrossTalkDegree()

double AbstractSDRFrontEnd::getTxIqCrossTalkDegree ( )

inlineoverridevirtual

Get the I/Q crosstalk angle for Tx.

Returns: double Current Tx I/Q crosstalk angle in degrees

Implements SDRFrontEndBasebandConfigurations.

Definition at line 291 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getUserSpecifiedTxParameters().

Referenced by setTxIQMismatch().

◆ getTxIqRatioDB()

double AbstractSDRFrontEnd::getTxIqRatioDB ( )

inlineoverridevirtual

Get the I/Q ratio for Tx in dB.

Returns: double Current Tx I/Q ratio in dB

Implements SDRFrontEndBasebandConfigurations.

Definition at line 287 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getUserSpecifiedTxParameters().

Referenced by setTxIQMismatch().

◆ getTxpower()

double AbstractSDRFrontEnd::getTxpower ( )

inlineoverridevirtual

get the transmission power (Tx power)

Returns: the Tx power

Implements FrontEndConfigurations.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 581 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().

◆ getTxResampleRatio()

double AbstractSDRFrontEnd::getTxResampleRatio ( )

inlineoverridevirtual

Get the Tx resampling ratio.

Returns: double Current Tx resampling ratio

Implements SDRFrontEndBasebandConfigurations.

Definition at line 364 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getUserSpecifiedTxParameters().

Referenced by setTxResampleRatio().

◆ isFullDuplexEnabled()

bool AbstractSDRFrontEnd::isFullDuplexEnabled ( )

inlineoverridevirtual

Check if full duplex mode is enabled.

Returns: bool True if full duplex is enabled, false otherwise

Implements SDRFrontEndBasebandConfigurations.

Definition at line 504 of file AbstractSDRFrontEnd.hxx.

References fullDuplex.

◆ isRxMergeHighLow()

bool AbstractSDRFrontEnd::isRxMergeHighLow ( )

inlineoverridevirtual

Check if high/low merge is enabled for Rx.

Returns: bool True if high/low merge is enabled, false otherwise

Implements SDRFrontEndBasebandConfigurations.

Definition at line 398 of file AbstractSDRFrontEnd.hxx.

References mergeHighLow.

◆ isRxResampleBypassFIR()

bool AbstractSDRFrontEnd::isRxResampleBypassFIR ( )

inlineoverridevirtual

Check if FIR filter is bypassed in Rx resampling.

Returns: bool True if FIR filter is bypassed, false otherwise

Implements SDRFrontEndBasebandConfigurations.

Definition at line 379 of file AbstractSDRFrontEnd.hxx.

References rxResampleBypassFIR.

Referenced by setRxResampleBypassFIR().

◆ isTxSplitHighLow()

bool AbstractSDRFrontEnd::isTxSplitHighLow ( )

inlineoverridevirtual

Check if high/low split is enabled for Tx.

Returns: bool True if high/low split is enabled, false otherwise

Implements SDRFrontEndBasebandConfigurations.

Definition at line 390 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getUserSpecifiedTxParameters().

◆ prebuildSignals()

virtual void AbstractSDRFrontEnd::prebuildSignals	(	ModularPicoScenesTxFrame &	frame,
		const uint8_t	numTxAntenna
	)

inlinevirtual

Generate the baseband signal via AbstractSDRFrontEnd::generateSignal and save the data into the prebuilt signals buffer of the Tx frame.

The design of this method and the prebuilt signal buffers in ModularPicoScenesTxFrame (ModularPicoScenesTxFrame::prebuiltCS8Signals or ModularPicoScenesTxFrame::prebuiltCS16Signals) is an approach to short-cut the signal generation time.

Template Parameters

SignalType can be int8_t or int16_t, as the pre-built signal buffers (ModularPicoScenesTxFrame::prebuiltCS8Signals or ModularPicoScenesTxFrame::prebuiltCS16Signals) of ModularPicoScenesTxFrame only support 8 or 16-bit

Parameters

frame
numTxAntenna

Definition at line 69 of file AbstractSDRFrontEnd.hxx.

References generateMultiChannelSignals().

◆ printStatus()

void AbstractSDRFrontEnd::printStatus ( )

inlineoverridevirtual

Print a status string to command line.

Implements AbstractFrontEnd.

Reimplemented in VirtualSDRFrontEnd.

Definition at line 525 of file AbstractSDRFrontEnd.hxx.

References AbstractFrontEnd::getReferredInterfaceName().
