SDRDeviceHardwareInformation Class Reference

Class providing comprehensive hardware information for SDR devices. More...

#include <SDRHardwareInformation.hxx>

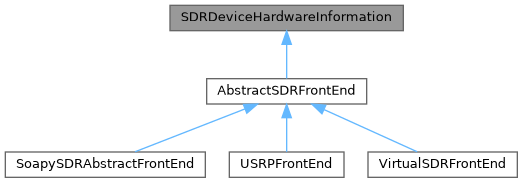

Inheritance diagram for SDRDeviceHardwareInformation:

Collaboration diagram for SDRDeviceHardwareInformation:

Public Member Functions
virtual std::vector< SDRMainBoardInfo >	getAllHardwareBoards (bool refresh=false)
	Get all hardware boards information.
virtual const SDRMainBoardInfo &	getHardwareBoardByIndex (size_t boardIndex, bool refresh=false)
	Get information for a specific board.
virtual size_t	getHardwareBoardCount (bool refresh=false)
	Get total number of hardware boards.
virtual const SDRMainBoardInfo &	getHardwareBoardInfo (bool refresh=false)
	Get main hardware board information.
virtual const std::vector< uint8_t > &	getHardwareSupportedTxChannels (bool refresh=false)
	Get supported Tx channels.
virtual const std::vector< uint8_t > &	getHardwareSupportedRxChannels (bool refresh=false)
	Get supported Rx channels.
virtual const std::vector< std::string > &	getHardwareSupportedTxAntennas (uint8_t channel, bool refresh=false)
	Get supported Tx antennas for a specific channel.
virtual const std::vector< std::string > &	getHardwareSupportedRxAntennas (uint8_t channel, bool refresh=false)
	Get supported Rx antennas for a specific channel.
virtual const std::vector< std::vector< std::string > > &	getHardwareSupportedTxAntennas (bool refresh=false)
	Get all supported Tx antennas.
virtual const std::vector< std::vector< std::string > > &	getHardwareSupportedRxAntennas (bool refresh=false)
	Get all supported Rx antennas.
virtual const std::pair< double, double > &	getHardwareTxGainRange (uint8_t channel, bool refresh=false)
	Get Tx gain range for a specific channel.
virtual const std::pair< double, double > &	getHardwareRxGainRange (uint8_t channel, bool refresh=false)
	Get Rx gain range for a specific channel.
virtual const std::vector< std::pair< double, double > > &	getHardwareTxGainRanges (bool refresh=false)
	Get all Tx gain ranges.
virtual const std::vector< std::pair< double, double > > &	getHardwareRxGainRanges (bool refresh=false)
	Get all Rx gain ranges.
virtual const std::pair< double, double > &	getHardwareTxFrequencyRange (uint8_t channel, bool refresh=false)
	Get Tx frequency range for a specific channel.
virtual const std::pair< double, double > &	getHardwareRxFrequencyRange (uint8_t channel, bool refresh=false)
	Get Rx frequency range for a specific channel.
virtual const std::vector< std::pair< double, double > > &	getHardwareTxFrequencyRanges (bool refresh=false)
	Get all Tx frequency ranges.
virtual const std::vector< std::pair< double, double > > &	getHardwareRxFrequencyRanges (bool refresh=false)
	Get all Rx frequency ranges.
virtual const std::pair< double, double > &	getHardwareTxSamplingRateRange (uint8_t channel, bool refresh=false)
	Get Tx sampling rate range for a specific channel.
virtual const std::pair< double, double > &	getHardwareRxSamplingRateRange (uint8_t channel, bool refresh=false)
	Get Rx sampling rate range for a specific channel.
virtual const std::vector< std::pair< double, double > > &	getHardwareTxSamplingRateRanges (bool refresh=false)
	Get all Tx sampling rate ranges.
virtual const std::vector< std::pair< double, double > > &	getHardwareRxSamplingRateRanges (bool refresh=false)
	Get all Rx sampling rate ranges.
virtual const std::vector< double > &	getHardwareSupportedMasterClockRates (bool refresh=false)
	Get supported master clock rates.
virtual const std::vector< std::string > &	getHardwareSupportedClockAndTimeSources (bool refresh=false)
	Get supported clock and time sources.
virtual const std::vector< std::string > &	getHardwareSupportedSensors (uint8_t channel, bool refresh=false)
	Get supported sensors for a specific channel.
virtual const std::vector< std::vector< std::string > > &	getAllHardwareSupportedSensors (bool refresh=false)
	Get all supported sensors.
virtual const std::vector< double > &	getHardwareTemperatures (bool refresh=false)
	Get temperature readings.
virtual bool	getHardwareAGCSupport (uint8_t channel, bool refresh=false)
	Get AGC support for a specific channel.
virtual const std::vector< bool > &	getHardwareAGCSupport (bool refresh=false)
	Get AGC support for all channels.
virtual const std::shared_ptr< SDRFrontEndProfile > &	getHardwareFrontEndProfile (uint8_t channel, bool refresh=false)
	Get frontend profile for a specific channel.
virtual const std::vector< std::shared_ptr< SDRFrontEndProfile > > &	getHardwareFrontEndProfiles (bool refresh=false)
	Get all frontend profiles.
virtual const SDRDaughterboardProfile &	getHardwareDaughterboardProfile (size_t index, bool refresh=false)
	Get daughterboard profile at specific index.
virtual const std::vector< SDRDaughterboardProfile > &	getHardwareDaughterboardProfiles (bool refresh=false)
	Get all daughterboard profiles.
virtual void	refreshAllHardwareInfo ()
	Refresh all hardware information.
std::string	hardwareInformationSheet ()
	Generate a formatted information sheet about the hardware.
virtual	~SDRDeviceHardwareInformation ()=default

Protected Member Functions
virtual void	refreshHardwareInfoForSupportedChannels ()
	Refresh supported channels information.
virtual void	refreshHardwareInfoForSupportedAntennas ()
	Refresh supported antennas information.
virtual void	refreshHardwareInfoForGainRanges ()
	Refresh gain ranges information.
virtual void	refreshHardwareInfoForFrequencyRanges ()
	Refresh frequency ranges information.
virtual void	refreshHardwareInfoForSamplingRateRanges ()
	Refresh sampling rate ranges information.
virtual void	refreshHardwareInfoForMasterClockRates ()
	Refresh master clock rates information.
virtual void	refreshHardwareInfoForClockAndTimeSources ()
	Refresh clock and time sources information.
virtual void	refreshHardwareInfoForSensors ()
	Refresh sensors information.
virtual void	refreshHardwareInfoForTemperatures ()
	Refresh temperature readings.
virtual void	refreshHardwareInfoForAGCSupport ()
	Refresh AGC support information.
virtual void	refreshHardwareInfoForBoards ()
	Refresh boards information.
virtual void	refreshHardwareInfoForConnectionProfile ()
	Refresh connection profile information.
virtual void	refreshHardwareInfoForFrontEndProfiles ()
	Refresh frontend profiles information.

Protected Attributes
SDRMainBoardInfo	boardInfo
bool	boardInfoChanged {true}
std::vector< uint8_t >	supportedTxChannels {}
std::vector< uint8_t >	supportedRxChannels {}
bool	supportedChannelsChanged {true}
std::vector< SDRDaughterboardProfile >	daughterboardProfiles {}
std::vector< std::shared_ptr< SDRFrontEndProfile > >	frontendProfiles {}
bool	frontendProfilesChanged {true}
std::vector< std::vector< std::string > >	supportedTxAntennas {}
std::vector< std::vector< std::string > >	supportedRxAntennas {}
bool	supportedAntennasChanged {true}
bool	supportedAntennasMapChanged {true}
std::vector< std::pair< double, double > >	txGainRanges {}
std::vector< std::pair< double, double > >	rxGainRanges {}
bool	gainRangesChanged {true}
bool	gainRangesMapChanged {true}
std::vector< std::pair< double, double > >	txFrequencyRanges {}
std::vector< std::pair< double, double > >	rxFrequencyRanges {}
bool	frequencyRangesChanged {true}
bool	frequencyRangesMapChanged {true}
std::vector< std::pair< double, double > >	txSamplingRateRanges {}
std::vector< std::pair< double, double > >	rxSamplingRateRanges {}
bool	samplingRateRangesChanged {true}
bool	samplingRateRangesMapChanged {true}
std::vector< double >	supportedMasterClockRates {}
bool	masterClockRatesChanged {true}
std::vector< std::string >	supportedClockAndTimeSources {}
bool	clockAndTimeSourcesChanged {true}
std::vector< std::vector< std::string > >	supportedSensors {}
bool	sensorsChanged {true}
bool	sensorsMapChanged {true}
std::vector< double >	temperatureReadings {}
bool	temperaturesChanged {true}
std::vector< bool >	agcSupport {}
bool	agcSupportChanged {true}
bool	agcSupportMapChanged {true}

Detailed Description

Class providing comprehensive hardware information for SDR devices.

This class provides methods to query various aspects of SDR hardware, including board information, channel capabilities, supported features, and hardware specifications. It maintains cached information that can be refreshed as needed.

Definition at line 182 of file SDRHardwareInformation.hxx.

Constructor & Destructor Documentation

~SDRDeviceHardwareInformation()

virtual SDRDeviceHardwareInformation::~SDRDeviceHardwareInformation ( )

virtualdefault

Member Function Documentation

getAllHardwareBoards()

virtual std::vector< SDRMainBoardInfo > SDRDeviceHardwareInformation::getAllHardwareBoards ( bool  refresh = false )

inlinevirtual

Get all hardware boards information.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of all board information

Definition at line 189 of file SDRHardwareInformation.hxx.

References boardInfo, boardInfoChanged, SDRMainBoardInfo::otherBoards, and refreshHardwareInfoForBoards().

Referenced by hardwareInformationSheet().

getAllHardwareSupportedSensors()

virtual const std::vector< std::vector< std::string > > & SDRDeviceHardwareInformation::getAllHardwareSupportedSensors ( bool  refresh = false )

inlinevirtual

Get all supported sensors.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of vectors containing sensor names for each channel

Definition at line 531 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSensors(), sensorsMapChanged, and supportedSensors.

getHardwareAGCSupport() [1/2]

virtual const std::vector< bool > & SDRDeviceHardwareInformation::getHardwareAGCSupport ( bool  refresh = false )

inlinevirtual

Get AGC support for all channels.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of AGC support flags for each channel

Definition at line 570 of file SDRHardwareInformation.hxx.

References agcSupport, agcSupportMapChanged, and refreshHardwareInfoForAGCSupport().

getHardwareAGCSupport() [2/2]

virtual bool SDRDeviceHardwareInformation::getHardwareAGCSupport ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get AGC support for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

true if AGC is supported, false otherwise

Definition at line 557 of file SDRHardwareInformation.hxx.

References agcSupport, agcSupportChanged, and refreshHardwareInfoForAGCSupport().

Referenced by hardwareInformationSheet().

getHardwareBoardByIndex()

virtual const SDRMainBoardInfo & SDRDeviceHardwareInformation::getHardwareBoardByIndex ( size_t  boardIndex, bool  refresh = false  )

inlinevirtual

Get information for a specific board.

Parameters

boardIndex	Index of the board (0 is main board)
refresh	Whether to refresh the information before returning

Returns

Reference to the board information

Exceptions

std::out_of_range

if boardIndex is invalid

Definition at line 206 of file SDRHardwareInformation.hxx.

References boardInfo, boardInfoChanged, SDRMainBoardInfo::otherBoards, and refreshHardwareInfoForBoards().

getHardwareBoardCount()

virtual size_t SDRDeviceHardwareInformation::getHardwareBoardCount ( bool  refresh = false )

inlinevirtual

Get total number of hardware boards.

Parameters

refresh

Whether to refresh the information before returning

Returns

Total number of boards

Definition at line 223 of file SDRHardwareInformation.hxx.

References boardInfo, boardInfoChanged, SDRMainBoardInfo::getTotalBoardCount(), and refreshHardwareInfoForBoards().

getHardwareBoardInfo()

virtual const SDRMainBoardInfo & SDRDeviceHardwareInformation::getHardwareBoardInfo ( bool  refresh = false )

inlinevirtual

Get main hardware board information.

Parameters

refresh

Whether to refresh the information before returning

Returns

Reference to main board information

Definition at line 236 of file SDRHardwareInformation.hxx.

References boardInfo, boardInfoChanged, and refreshHardwareInfoForBoards().

Referenced by hardwareInformationSheet().

getHardwareDaughterboardProfile()

virtual const SDRDaughterboardProfile & SDRDeviceHardwareInformation::getHardwareDaughterboardProfile ( size_t  index, bool  refresh = false  )

inlinevirtual

Get daughterboard profile at specific index.

Parameters

index	Daughterboard index
refresh	Whether to refresh the information before returning

Returns

Reference to daughterboard profile

Definition at line 611 of file SDRHardwareInformation.hxx.

References daughterboardProfiles, frontendProfilesChanged, and refreshHardwareInfoForFrontEndProfiles().

getHardwareDaughterboardProfiles()

virtual const std::vector< SDRDaughterboardProfile > & SDRDeviceHardwareInformation::getHardwareDaughterboardProfiles ( bool  refresh = false )

inlinevirtual

Get all daughterboard profiles.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of daughterboard profiles

Definition at line 624 of file SDRHardwareInformation.hxx.

References daughterboardProfiles, frontendProfilesChanged, and refreshHardwareInfoForFrontEndProfiles().

Referenced by hardwareInformationSheet().

getHardwareFrontEndProfile()

virtual const std::shared_ptr< SDRFrontEndProfile > & SDRDeviceHardwareInformation::getHardwareFrontEndProfile ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get frontend profile for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Shared pointer to frontend profile

Definition at line 584 of file SDRHardwareInformation.hxx.

References frontendProfiles, frontendProfilesChanged, and refreshHardwareInfoForFrontEndProfiles().

getHardwareFrontEndProfiles()

virtual const std::vector< std::shared_ptr< SDRFrontEndProfile > > & SDRDeviceHardwareInformation::getHardwareFrontEndProfiles ( bool  refresh = false )

inlinevirtual

Get all frontend profiles.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of shared pointers to frontend profiles

Definition at line 597 of file SDRHardwareInformation.hxx.

References frontendProfiles, frontendProfilesChanged, and refreshHardwareInfoForFrontEndProfiles().

Referenced by hardwareInformationSheet().

getHardwareRxFrequencyRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareRxFrequencyRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Rx frequency range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum frequency in Hz

Definition at line 398 of file SDRHardwareInformation.hxx.

References frequencyRangesChanged, refreshHardwareInfoForFrequencyRanges(), and rxFrequencyRanges.

Referenced by hardwareInformationSheet().

getHardwareRxFrequencyRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareRxFrequencyRanges ( bool  refresh = false )

inlinevirtual

Get all Rx frequency ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of frequency range pairs for each channel

Definition at line 424 of file SDRHardwareInformation.hxx.

References frequencyRangesMapChanged, refreshHardwareInfoForFrequencyRanges(), and rxFrequencyRanges.

getHardwareRxGainRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareRxGainRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Rx gain range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum gain in dB

Definition at line 344 of file SDRHardwareInformation.hxx.

References gainRangesChanged, refreshHardwareInfoForGainRanges(), and rxGainRanges.

Referenced by hardwareInformationSheet().

getHardwareRxGainRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareRxGainRanges ( bool  refresh = false )

inlinevirtual

Get all Rx gain ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of gain range pairs for each channel

Definition at line 370 of file SDRHardwareInformation.hxx.

References gainRangesMapChanged, refreshHardwareInfoForGainRanges(), and rxGainRanges.

getHardwareRxSamplingRateRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareRxSamplingRateRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Rx sampling rate range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum sampling rate in Hz

Definition at line 452 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSamplingRateRanges(), rxSamplingRateRanges, and samplingRateRangesChanged.

Referenced by hardwareInformationSheet().

getHardwareRxSamplingRateRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareRxSamplingRateRanges ( bool  refresh = false )

inlinevirtual

Get all Rx sampling rate ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of sampling rate range pairs for each channel

Definition at line 478 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSamplingRateRanges(), rxSamplingRateRanges, and samplingRateRangesMapChanged.

getHardwareSupportedClockAndTimeSources()

virtual const std::vector< std::string > & SDRDeviceHardwareInformation::getHardwareSupportedClockAndTimeSources ( bool  refresh = false )

inlinevirtual

Get supported clock and time sources.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of supported source names

Definition at line 504 of file SDRHardwareInformation.hxx.

References clockAndTimeSourcesChanged, refreshHardwareInfoForClockAndTimeSources(), and supportedClockAndTimeSources.

getHardwareSupportedMasterClockRates()

virtual const std::vector< double > & SDRDeviceHardwareInformation::getHardwareSupportedMasterClockRates ( bool  refresh = false )

inlinevirtual

Get supported master clock rates.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of supported master clock rates in Hz

Definition at line 491 of file SDRHardwareInformation.hxx.

References masterClockRatesChanged, refreshHardwareInfoForMasterClockRates(), and supportedMasterClockRates.

Referenced by hardwareInformationSheet().

getHardwareSupportedRxAntennas() [1/2]

virtual const std::vector< std::vector< std::string > > & SDRDeviceHardwareInformation::getHardwareSupportedRxAntennas ( bool  refresh = false )

inlinevirtual

Get all supported Rx antennas.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of vectors containing antenna names for each channel

Definition at line 316 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedAntennas(), supportedAntennasMapChanged, and supportedRxAntennas.

getHardwareSupportedRxAntennas() [2/2]

virtual const std::vector< std::string > & SDRDeviceHardwareInformation::getHardwareSupportedRxAntennas ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get supported Rx antennas for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Vector of supported antenna names

Definition at line 290 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedAntennas(), supportedAntennasChanged, and supportedRxAntennas.

Referenced by hardwareInformationSheet().

getHardwareSupportedRxChannels()

virtual const std::vector< uint8_t > & SDRDeviceHardwareInformation::getHardwareSupportedRxChannels ( bool  refresh = false )

inlinevirtual

Get supported Rx channels.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of supported Rx channel numbers

Definition at line 262 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedChannels(), supportedChannelsChanged, and supportedRxChannels.

Referenced by hardwareInformationSheet().

getHardwareSupportedSensors()

virtual const std::vector< std::string > & SDRDeviceHardwareInformation::getHardwareSupportedSensors ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get supported sensors for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Vector of supported sensor names

Definition at line 518 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSensors(), sensorsChanged, and supportedSensors.

getHardwareSupportedTxAntennas() [1/2]

virtual const std::vector< std::vector< std::string > > & SDRDeviceHardwareInformation::getHardwareSupportedTxAntennas ( bool  refresh = false )

inlinevirtual

Get all supported Tx antennas.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of vectors containing antenna names for each channel

Definition at line 303 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedAntennas(), supportedAntennasMapChanged, and supportedTxAntennas.

getHardwareSupportedTxAntennas() [2/2]

virtual const std::vector< std::string > & SDRDeviceHardwareInformation::getHardwareSupportedTxAntennas ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get supported Tx antennas for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Vector of supported antenna names

Definition at line 276 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedAntennas(), supportedAntennasChanged, and supportedTxAntennas.

Referenced by hardwareInformationSheet().

getHardwareSupportedTxChannels()

virtual const std::vector< uint8_t > & SDRDeviceHardwareInformation::getHardwareSupportedTxChannels ( bool  refresh = false )

inlinevirtual

Get supported Tx channels.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of supported Tx channel numbers

Definition at line 249 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSupportedChannels(), supportedChannelsChanged, and supportedTxChannels.

Referenced by hardwareInformationSheet().

getHardwareTemperatures()

virtual const std::vector< double > & SDRDeviceHardwareInformation::getHardwareTemperatures ( bool  refresh = false )

inlinevirtual

Get temperature readings.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of temperature values in Celsius

Definition at line 544 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForTemperatures(), temperatureReadings, and temperaturesChanged.

getHardwareTxFrequencyRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareTxFrequencyRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Tx frequency range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum frequency in Hz

Definition at line 384 of file SDRHardwareInformation.hxx.

References frequencyRangesChanged, refreshHardwareInfoForFrequencyRanges(), and txFrequencyRanges.

Referenced by hardwareInformationSheet().

getHardwareTxFrequencyRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareTxFrequencyRanges ( bool  refresh = false )

inlinevirtual

Get all Tx frequency ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of frequency range pairs for each channel

Definition at line 411 of file SDRHardwareInformation.hxx.

References frequencyRangesMapChanged, refreshHardwareInfoForFrequencyRanges(), and txFrequencyRanges.

getHardwareTxGainRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareTxGainRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Tx gain range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum gain in dB

Definition at line 330 of file SDRHardwareInformation.hxx.

References gainRangesChanged, refreshHardwareInfoForGainRanges(), and txGainRanges.

Referenced by hardwareInformationSheet().

getHardwareTxGainRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareTxGainRanges ( bool  refresh = false )

inlinevirtual

Get all Tx gain ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of gain range pairs for each channel

Definition at line 357 of file SDRHardwareInformation.hxx.

References gainRangesMapChanged, refreshHardwareInfoForGainRanges(), and txGainRanges.

getHardwareTxSamplingRateRange()

virtual const std::pair< double, double > & SDRDeviceHardwareInformation::getHardwareTxSamplingRateRange ( uint8_t  channel, bool  refresh = false  )

inlinevirtual

Get Tx sampling rate range for a specific channel.

Parameters

channel	Channel number
refresh	Whether to refresh the information before returning

Returns

Pair of minimum and maximum sampling rate in Hz

Definition at line 438 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSamplingRateRanges(), samplingRateRangesChanged, and txSamplingRateRanges.

Referenced by hardwareInformationSheet().

getHardwareTxSamplingRateRanges()

virtual const std::vector< std::pair< double, double > > & SDRDeviceHardwareInformation::getHardwareTxSamplingRateRanges ( bool  refresh = false )

inlinevirtual

Get all Tx sampling rate ranges.

Parameters

refresh

Whether to refresh the information before returning

Returns

Vector of sampling rate range pairs for each channel

Definition at line 465 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForSamplingRateRanges(), samplingRateRangesMapChanged, and txSamplingRateRanges.

hardwareInformationSheet()

std::string SDRDeviceHardwareInformation::hardwareInformationSheet ( )

inline

Generate a formatted information sheet about the hardware.

Returns

String containing formatted hardware information

Definition at line 655 of file SDRHardwareInformation.hxx.

References agcSupport, SDRConnectionProfile::Ethernet, frontendProfiles, getAllHardwareBoards(), getHardwareAGCSupport(), getHardwareBoardInfo(), getHardwareDaughterboardProfiles(), getHardwareFrontEndProfiles(), getHardwareRxFrequencyRange(), getHardwareRxGainRange(), getHardwareRxSamplingRateRange(), getHardwareSupportedMasterClockRates(), getHardwareSupportedRxAntennas(), getHardwareSupportedRxChannels(), getHardwareSupportedTxAntennas(), getHardwareSupportedTxChannels(), getHardwareTxFrequencyRange(), getHardwareTxGainRange(), getHardwareTxSamplingRateRange(), SDRConnectionProfile::PCIe, and SDRConnectionProfile::USB.

refreshAllHardwareInfo()

virtual void SDRDeviceHardwareInformation::refreshAllHardwareInfo ( )

inlinevirtual

Refresh all hardware information.

Definition at line 635 of file SDRHardwareInformation.hxx.

References refreshHardwareInfoForAGCSupport(), refreshHardwareInfoForBoards(), refreshHardwareInfoForClockAndTimeSources(), refreshHardwareInfoForConnectionProfile(), refreshHardwareInfoForFrequencyRanges(), refreshHardwareInfoForFrontEndProfiles(), refreshHardwareInfoForGainRanges(), refreshHardwareInfoForMasterClockRates(), refreshHardwareInfoForSamplingRateRanges(), refreshHardwareInfoForSensors(), refreshHardwareInfoForSupportedAntennas(), refreshHardwareInfoForSupportedChannels(), and refreshHardwareInfoForTemperatures().

refreshHardwareInfoForAGCSupport()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForAGCSupport ( )

inlineprotectedvirtual

Refresh AGC support information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 983 of file SDRHardwareInformation.hxx.

Referenced by getHardwareAGCSupport(), getHardwareAGCSupport(), and refreshAllHardwareInfo().

refreshHardwareInfoForBoards()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForBoards ( )

inlineprotectedvirtual

Refresh boards information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 989 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareBoards(), getHardwareBoardByIndex(), getHardwareBoardCount(), getHardwareBoardInfo(), and refreshAllHardwareInfo().

refreshHardwareInfoForClockAndTimeSources()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForClockAndTimeSources ( )

inlineprotectedvirtual

Refresh clock and time sources information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 965 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedClockAndTimeSources(), and refreshAllHardwareInfo().

refreshHardwareInfoForConnectionProfile()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForConnectionProfile ( )

inlineprotectedvirtual

Refresh connection profile information.

Definition at line 995 of file SDRHardwareInformation.hxx.

Referenced by refreshAllHardwareInfo().

refreshHardwareInfoForFrequencyRanges()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForFrequencyRanges ( )

inlineprotectedvirtual

Refresh frequency ranges information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 947 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxFrequencyRange(), getHardwareRxFrequencyRanges(), getHardwareTxFrequencyRange(), getHardwareTxFrequencyRanges(), and refreshAllHardwareInfo().

refreshHardwareInfoForFrontEndProfiles()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForFrontEndProfiles ( )

inlineprotectedvirtual

Refresh frontend profiles information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 1001 of file SDRHardwareInformation.hxx.

Referenced by getHardwareDaughterboardProfile(), getHardwareDaughterboardProfiles(), getHardwareFrontEndProfile(), getHardwareFrontEndProfiles(), and refreshAllHardwareInfo().

refreshHardwareInfoForGainRanges()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForGainRanges ( )

inlineprotectedvirtual

Refresh gain ranges information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 941 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxGainRange(), getHardwareRxGainRanges(), getHardwareTxGainRange(), getHardwareTxGainRanges(), and refreshAllHardwareInfo().

refreshHardwareInfoForMasterClockRates()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForMasterClockRates ( )

inlineprotectedvirtual

Refresh master clock rates information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 959 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedMasterClockRates(), and refreshAllHardwareInfo().

refreshHardwareInfoForSamplingRateRanges()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForSamplingRateRanges ( )

inlineprotectedvirtual

Refresh sampling rate ranges information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 953 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxSamplingRateRange(), getHardwareRxSamplingRateRanges(), getHardwareTxSamplingRateRange(), getHardwareTxSamplingRateRanges(), and refreshAllHardwareInfo().

refreshHardwareInfoForSensors()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForSensors ( )

inlineprotectedvirtual

Refresh sensors information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 971 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareSupportedSensors(), getHardwareSupportedSensors(), and refreshAllHardwareInfo().

refreshHardwareInfoForSupportedAntennas()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForSupportedAntennas ( )

inlineprotectedvirtual

Refresh supported antennas information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 935 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxAntennas(), getHardwareSupportedRxAntennas(), getHardwareSupportedTxAntennas(), getHardwareSupportedTxAntennas(), and refreshAllHardwareInfo().

refreshHardwareInfoForSupportedChannels()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForSupportedChannels ( )

inlineprotectedvirtual

Refresh supported channels information.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 929 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxChannels(), getHardwareSupportedTxChannels(), and refreshAllHardwareInfo().

refreshHardwareInfoForTemperatures()

virtual void SDRDeviceHardwareInformation::refreshHardwareInfoForTemperatures ( )

inlineprotectedvirtual

Refresh temperature readings.

Reimplemented in AbstractSDRFrontEnd.

Definition at line 977 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTemperatures(), and refreshAllHardwareInfo().

Member Data Documentation

agcSupport

std::vector<bool> SDRDeviceHardwareInformation::agcSupport {}

mutableprotected

AGC support flags

Definition at line 1049 of file SDRHardwareInformation.hxx.

Referenced by getHardwareAGCSupport(), getHardwareAGCSupport(), and hardwareInformationSheet().

agcSupportChanged

bool SDRDeviceHardwareInformation::agcSupportChanged {true}

mutableprotected

Flag indicating if AGC support info needs refresh

Definition at line 1050 of file SDRHardwareInformation.hxx.

Referenced by getHardwareAGCSupport().

agcSupportMapChanged

bool SDRDeviceHardwareInformation::agcSupportMapChanged {true}

mutableprotected

Flag indicating if AGC support map needs refresh

Definition at line 1051 of file SDRHardwareInformation.hxx.

Referenced by getHardwareAGCSupport().

boardInfo

SDRMainBoardInfo SDRDeviceHardwareInformation::boardInfo

mutableprotected

Main board information

Definition at line 1005 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareBoards(), getHardwareBoardByIndex(), getHardwareBoardCount(), and getHardwareBoardInfo().

boardInfoChanged

bool SDRDeviceHardwareInformation::boardInfoChanged {true}

mutableprotected

Flag indicating if board info needs refresh

Definition at line 1006 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareBoards(), getHardwareBoardByIndex(), getHardwareBoardCount(), and getHardwareBoardInfo().

clockAndTimeSourcesChanged

bool SDRDeviceHardwareInformation::clockAndTimeSourcesChanged {true}

mutableprotected

Flag indicating if sources need refresh

Definition at line 1040 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedClockAndTimeSources().

daughterboardProfiles

std::vector<SDRDaughterboardProfile> SDRDeviceHardwareInformation::daughterboardProfiles {}

mutableprotected

Daughterboard profiles

Definition at line 1012 of file SDRHardwareInformation.hxx.

Referenced by getHardwareDaughterboardProfile(), and getHardwareDaughterboardProfiles().

frequencyRangesChanged

bool SDRDeviceHardwareInformation::frequencyRangesChanged {true}

mutableprotected

Flag indicating if frequency ranges need refresh

Definition at line 1028 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxFrequencyRange(), and getHardwareTxFrequencyRange().

frequencyRangesMapChanged

bool SDRDeviceHardwareInformation::frequencyRangesMapChanged {true}

mutableprotected

Flag indicating if frequency range map needs refresh

Definition at line 1029 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxFrequencyRanges(), and getHardwareTxFrequencyRanges().

frontendProfiles

std::vector<std::shared_ptr<SDRFrontEndProfile> > SDRDeviceHardwareInformation::frontendProfiles {}

mutableprotected

Frontend profiles

Definition at line 1013 of file SDRHardwareInformation.hxx.

Referenced by getHardwareFrontEndProfile(), getHardwareFrontEndProfiles(), and hardwareInformationSheet().

frontendProfilesChanged

bool SDRDeviceHardwareInformation::frontendProfilesChanged {true}

mutableprotected

Flag indicating if profiles need refresh

Definition at line 1014 of file SDRHardwareInformation.hxx.

Referenced by getHardwareDaughterboardProfile(), getHardwareDaughterboardProfiles(), getHardwareFrontEndProfile(), and getHardwareFrontEndProfiles().

gainRangesChanged

bool SDRDeviceHardwareInformation::gainRangesChanged {true}

mutableprotected

Flag indicating if gain ranges need refresh

Definition at line 1023 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxGainRange(), and getHardwareTxGainRange().

gainRangesMapChanged

bool SDRDeviceHardwareInformation::gainRangesMapChanged {true}

mutableprotected

Flag indicating if gain range map needs refresh

Definition at line 1024 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxGainRanges(), and getHardwareTxGainRanges().

masterClockRatesChanged

bool SDRDeviceHardwareInformation::masterClockRatesChanged {true}

mutableprotected

Flag indicating if clock rates need refresh

Definition at line 1037 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedMasterClockRates().

rxFrequencyRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::rxFrequencyRanges {}

mutableprotected

Rx frequency ranges

Definition at line 1027 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxFrequencyRange(), and getHardwareRxFrequencyRanges().

rxGainRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::rxGainRanges {}

mutableprotected

Rx gain ranges

Definition at line 1022 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxGainRange(), and getHardwareRxGainRanges().

rxSamplingRateRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::rxSamplingRateRanges {}

mutableprotected

Rx sampling rate ranges

Definition at line 1032 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxSamplingRateRange(), and getHardwareRxSamplingRateRanges().

samplingRateRangesChanged

bool SDRDeviceHardwareInformation::samplingRateRangesChanged {true}

mutableprotected

Flag indicating if sampling rate ranges need refresh

Definition at line 1033 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxSamplingRateRange(), and getHardwareTxSamplingRateRange().

samplingRateRangesMapChanged

bool SDRDeviceHardwareInformation::samplingRateRangesMapChanged {true}

mutableprotected

Flag indicating if sampling rate range map needs refresh

Definition at line 1034 of file SDRHardwareInformation.hxx.

Referenced by getHardwareRxSamplingRateRanges(), and getHardwareTxSamplingRateRanges().

sensorsChanged

bool SDRDeviceHardwareInformation::sensorsChanged {true}

mutableprotected

Flag indicating if sensor info needs refresh

Definition at line 1043 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedSensors().

sensorsMapChanged

bool SDRDeviceHardwareInformation::sensorsMapChanged {true}

mutableprotected

Flag indicating if sensor map needs refresh

Definition at line 1044 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareSupportedSensors().

supportedAntennasChanged

bool SDRDeviceHardwareInformation::supportedAntennasChanged {true}

mutableprotected

Flag indicating if antenna info needs refresh

Definition at line 1018 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxAntennas(), and getHardwareSupportedTxAntennas().

supportedAntennasMapChanged

bool SDRDeviceHardwareInformation::supportedAntennasMapChanged {true}

mutableprotected

Flag indicating if antenna map needs refresh

Definition at line 1019 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxAntennas(), and getHardwareSupportedTxAntennas().

supportedChannelsChanged

bool SDRDeviceHardwareInformation::supportedChannelsChanged {true}

mutableprotected

Flag indicating if channel info needs refresh

Definition at line 1010 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxChannels(), and getHardwareSupportedTxChannels().

supportedClockAndTimeSources

std::vector<std::string> SDRDeviceHardwareInformation::supportedClockAndTimeSources {}

mutableprotected

Supported clock and time sources

Definition at line 1039 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedClockAndTimeSources().

supportedMasterClockRates

std::vector<double> SDRDeviceHardwareInformation::supportedMasterClockRates {}

mutableprotected

Supported master clock rates

Definition at line 1036 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedMasterClockRates().

supportedRxAntennas

std::vector<std::vector<std::string> > SDRDeviceHardwareInformation::supportedRxAntennas {}

mutableprotected

Supported Rx antennas

Definition at line 1017 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxAntennas(), and getHardwareSupportedRxAntennas().

supportedRxChannels

std::vector<uint8_t> SDRDeviceHardwareInformation::supportedRxChannels {}

mutableprotected

Supported Rx channels

Definition at line 1009 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedRxChannels().

supportedSensors

std::vector<std::vector<std::string> > SDRDeviceHardwareInformation::supportedSensors {}

mutableprotected

Supported sensors

Definition at line 1042 of file SDRHardwareInformation.hxx.

Referenced by getAllHardwareSupportedSensors(), and getHardwareSupportedSensors().

supportedTxAntennas

std::vector<std::vector<std::string> > SDRDeviceHardwareInformation::supportedTxAntennas {}

mutableprotected

Supported Tx antennas

Definition at line 1016 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedTxAntennas(), and getHardwareSupportedTxAntennas().

supportedTxChannels

std::vector<uint8_t> SDRDeviceHardwareInformation::supportedTxChannels {}

mutableprotected

Supported Tx channels

Definition at line 1008 of file SDRHardwareInformation.hxx.

Referenced by getHardwareSupportedTxChannels().

temperatureReadings

std::vector<double> SDRDeviceHardwareInformation::temperatureReadings {}

mutableprotected

Temperature readings

Definition at line 1046 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTemperatures().

temperaturesChanged

bool SDRDeviceHardwareInformation::temperaturesChanged {true}

mutableprotected

Flag indicating if temperature readings need refresh

Definition at line 1047 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTemperatures().

txFrequencyRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::txFrequencyRanges {}

mutableprotected

Tx frequency ranges

Definition at line 1026 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTxFrequencyRange(), and getHardwareTxFrequencyRanges().

txGainRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::txGainRanges {}

mutableprotected

Tx gain ranges

Definition at line 1021 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTxGainRange(), and getHardwareTxGainRanges().

txSamplingRateRanges

std::vector<std::pair<double, double> > SDRDeviceHardwareInformation::txSamplingRateRanges {}

mutableprotected

Tx sampling rate ranges

Definition at line 1031 of file SDRHardwareInformation.hxx.

Referenced by getHardwareTxSamplingRateRange(), and getHardwareTxSamplingRateRanges().

---

The documentation for this class was generated from the following file:

• headers/SDRHardwareInformation.hxx
