Configuration class for SDR frontend hardware settings. More...

#include <SDRFrontEndConfigurations.hxx>

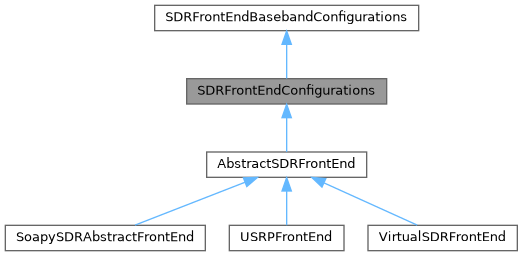

Inheritance diagram for SDRFrontEndConfigurations:

[legend]

Collaboration diagram for SDRFrontEndConfigurations:

Public Member Functions
virtual void	initializeSDR ()=0
	Initialize the SDR hardware.

virtual const std::vector< size_t > &	userSpecifiedTxChannels () const =0
	Get the list of user-specified Tx channels.

virtual const std::vector< size_t > &	userSpecifiedRxChannels () const =0
	Get the list of user-specified Rx channels.

virtual void	setTxCarrierFrequencies (std::vector< double > carrierFreqs)=0
	Set carrier frequencies for Tx channels.

virtual void	setRxCarrierFrequencies (std::vector< double > carrierFreqs)=0
	Set carrier frequencies for Rx channels.

virtual std::vector< double >	getTxCarrierFrequencies ()=0
	Get carrier frequencies for Tx channels.

virtual std::vector< double >	getRxCarrierFrequencies ()=0
	Get carrier frequencies for Rx channels.

virtual void	setTxSamplingRate (double txRate)=0
	Set the Tx sampling rate.

virtual void	setRxSamplingRate (double rxRate)=0
	Set the Rx sampling rate.

virtual double	getTxSamplingRate ()=0
	Get the current Tx sampling rate.

virtual double	getRxSamplingRate ()=0
	Get the current Rx sampling rate.

virtual bool	supportAGC ()=0
	Check if AGC is supported.

virtual void	setAGC (bool enableAGC)=0
	Enable or disable AGC.

virtual std::string	getTxAntenna ()=0
	Get the current Tx antenna.

virtual std::string	getRxAntenna ()=0
	Get the current Rx antenna.

virtual void	setTxAntenna (const std::string &txAnt)=0
	Set the Tx antenna.

virtual void	setRxAntenna (const std::string &rxAnt)=0
	Set the Rx antenna.

virtual std::vector< std::string >	getTxAntennas ()=0
	Get list of available Tx antennas.

virtual std::vector< std::string >	getRxAntennas ()=0
	Get list of available Rx antennas.

virtual void	setTxAntennas (const std::vector< std::string > &txAnts)=0
	Set antennas for all Tx chains.

virtual void	setRxAntennas (const std::vector< std::string > &rxAnts)=0
	Set antennas for all Rx chains.

virtual double	getFilterBandwidth ()=0
	Get the current filter bandwidth.

virtual void	setFilterBandwidth (double bw)=0
	Set the filter bandwidth.

virtual std::string	getClockSource ()=0
	Get the current clock source.

virtual void	setClockSource (const std::string &clockSource)=0
	Set the clock source.

virtual void	setClockSources (const std::vector< std::string > &clockSources)=0
	Set clock sources for multiple motherboards.

virtual std::vector< std::string >	getClockSources ()=0
	Get list of current clock sources.

virtual std::string	getTimeSource ()=0
	Get the current time source.

virtual void	setTimeSource (const std::string &timeSource)=0
	Set the time source.

virtual void	setTimeSources (const std::vector< std::string > &timeSources)=0
	Set time sources for multiple motherboards.

virtual std::vector< std::string >	getTimeSources ()=0
	Get list of current time sources.

virtual double	getMasterClockRate ()=0
	Get the master clock rate.

virtual void	setMasterClockRate (double masterClockRate)=0
	Set the master clock rate.

virtual SDRFrontEndTransferType	getTransferType () const =0
	Get the current transfer type.

virtual void	setTransferType (SDRFrontEndTransferType transferType)=0
	Set the transfer type.

virtual void	setNumThreads4RxDecoding (uint8_t numThreads)=0
	Set the number of threads for Rx decoding.

virtual double	getRxBufferDuration () const =0
	Get the Rx buffer duration.

virtual void	skipMPDUDecoding4HESUHighDopplerFrame (bool skipDataDecoding)=0
	Set whether to skip MPDU decoding for HE-SU high Doppler frames.

virtual void	setRxPipelineChannels (std::vector< std::vector< size_t > > PipelineChannels)=0

virtual std::vector< std::vector< size_t > >	getRxPipelineChannels ()=0

virtual void	setPinelineConfig (std::vector< PipelineConfig > cfgs)=0

virtual std::vector< PipelineConfig >	getPinelineConfig ()=0

Public Member Functions inherited from SDRFrontEndBasebandConfigurations
virtual	~SDRFrontEndBasebandConfigurations ()=default

virtual double	getRxSensitivity ()=0
	Get the receiver sensitivity.

virtual void	setRxSensitivity (double rxSensitivity)=0
	Set the receiver sensitivity.

virtual bool	isRxResampleBypassFIR ()=0
	Check if FIR filter is bypassed in Rx resampling.

virtual void	setRxResampleBypassFIR (bool bypass)=0
	Set whether to bypass FIR filter in Rx resampling.

virtual bool	isTxSplitHighLow ()=0
	Check if high/low split is enabled for Tx.

virtual void	setTxSplitHighLow (bool split)=0
	Set whether to split high/low for Tx.

virtual bool	isRxMergeHighLow ()=0
	Check if high/low merge is enabled for Rx.

virtual void	setRxMergeHighLow (bool merge)=0
	Set whether to merge high/low for Rx.

virtual std::optional< double >	getCarrierFrequencyOffset4TxEncoding ()=0
	Get the carrier frequency offset for Tx encoding.

virtual void	setCarrierFrequencyOffset4TxEncoding (double carrierFrequencyOffset)=0
	Set the carrier frequency offset for Tx encoding.

virtual std::optional< double >	getSamplingFrequencyOffset4TxEncoding ()=0
	Get the sampling frequency offset for Tx encoding.

virtual void	setSamplingFrequencyOffset4TxEncoding (double samplingFrequencyOffset)=0
	Set the sampling frequency offset for Tx encoding.

virtual std::optional< double >	getCarrierFrequencyOffset4RxDecoding ()=0
	Get the carrier frequency offset for Rx decoding.

virtual void	setCarrierFrequencyOffset4RxDecoding (double carrierFrequencyOffset)=0
	Set the carrier frequency offset for Rx decoding.

virtual std::optional< double >	getSamplingFrequencyOffset4RxDecoding ()=0
	Get the sampling frequency offset for Rx decoding.

virtual void	setSamplingFrequencyOffset4RxDecoding (double samplingFrequencyOffset)=0
	Set the sampling frequency offset for Rx decoding.

virtual double	getTxResampleRatio ()=0
	Get the Tx resampling ratio.

virtual void	setTxResampleRatio (double txResampleRatio)=0
	Set the Tx resampling ratio.

virtual double	getRxResampleRatio ()=0
	Get the Rx resampling ratio.

virtual void	setRxResampleRatio (double rxResampleRatio)=0
	Set the Rx resampling ratio.

virtual double	getSDRFrontEndTime ()=0
	Get the current SDR hardware time.

virtual ChannelBandwidthEnum	getRxChannelBandwidthMode ()=0
	Get the current channel bandwidth mode for Rx.

virtual void	setRxChannelBandwidthMode (ChannelBandwidthEnum rxCbw)=0
	Set the channel bandwidth mode for Rx.

virtual void	setTxIQMismatch (double iq_ratio_db, double iq_crosstalk_degree)=0
	Set I/Q mismatch parameters for Tx.

virtual void	setRxIQMismatch (double iq_ratio_db, double iq_crosstalk_degree)=0
	Set I/Q mismatch parameters for Rx.

virtual double	getTxIqRatioDB ()=0
	Get the I/Q ratio for Tx in dB.

virtual double	getTxIqCrossTalkDegree ()=0
	Get the I/Q crosstalk angle for Tx.

virtual double	getRxIqRatioDB ()=0
	Get the I/Q ratio for Rx in dB.

virtual double	getRxIqCrossTalkDegree ()=0
	Get the I/Q crosstalk angle for Rx.

virtual bool	isFullDuplexEnabled ()=0
	Check if full duplex mode is enabled.

virtual void	setFullDuplex (bool enableFullduplex)=0
	Set full duplex mode.

virtual double	getRxOfdmSymbolOffset ()=0
	Get the Rx OFDM symbol offset.

virtual void	setRxOfdmSymbolOffset (double rxOfdmSymbolOffset)=0
	Set the Rx OFDM symbol offset.

virtual double	getNumSamplesSavedBeforeStart ()=0
	Get the number of samples saved before start.

virtual void	getNumSamplesSavedBeforeStart (double numSamplesSavedBeforeStart)=0
	Set the number of samples saved before start.

virtual bool	isReturnBasebandSignals () const =0
	Check if baseband signals should be returned.

virtual bool	useConventionalPacketDetector () const =0
	Check if conventional packet detector should be used.

Detailed Description

Configuration class for SDR frontend hardware settings.

This class extends SDRFrontEndBasebandConfigurations to provide additional configuration options specific to SDR hardware, such as carrier frequencies, sampling rates, gain settings, and hardware-specific parameters.

Definition at line 369 of file SDRFrontEndConfigurations.hxx.

Member Function Documentation

◆ getClockSource()

virtual std::string SDRFrontEndConfigurations::getClockSource ( )

pure virtual

Get the current clock source.

Returns: std::string Name of current clock source

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getClockSources()

virtual std::vector< std::string > SDRFrontEndConfigurations::getClockSources ( )

pure virtual

Get list of current clock sources.

Returns: std::vector<std::string> List of current clock source names

Implemented in AbstractSDRFrontEnd.

◆ getFilterBandwidth()

virtual double SDRFrontEndConfigurations::getFilterBandwidth ( )

pure virtual

Get the current filter bandwidth.

Returns: double Current filter bandwidth in Hz

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getMasterClockRate()

virtual double SDRFrontEndConfigurations::getMasterClockRate ( )

pure virtual

Get the master clock rate.

Returns: double Current master clock rate in Hz

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getPinelineConfig()

virtual std::vector< PipelineConfig > SDRFrontEndConfigurations::getPinelineConfig ( )

pure virtual

Implemented in AbstractSDRFrontEnd.

◆ getRxAntenna()

virtual std::string SDRFrontEndConfigurations::getRxAntenna ( )

pure virtual

Get the current Rx antenna.

Returns: std::string Name of current Rx antenna

Implemented in AbstractSDRFrontEnd.

◆ getRxAntennas()

virtual std::vector< std::string > SDRFrontEndConfigurations::getRxAntennas ( )

pure virtual

Get list of available Rx antennas.

Returns: std::vector<std::string> List of available Rx antenna names

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getRxBufferDuration()

virtual double SDRFrontEndConfigurations::getRxBufferDuration ( ) const

pure virtual

Get the Rx buffer duration.

Returns: double Current Rx buffer duration

◆ getRxCarrierFrequencies()

virtual std::vector< double > SDRFrontEndConfigurations::getRxCarrierFrequencies ( )

pure virtual

Get carrier frequencies for Rx channels.

Returns: std::vector<double> Vector of current Rx carrier frequencies

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::getCarrierFrequency().

◆ getRxPipelineChannels()

virtual std::vector< std::vector< size_t > > SDRFrontEndConfigurations::getRxPipelineChannels ( )

pure virtual

Implemented in AbstractSDRFrontEnd.

◆ getRxSamplingRate()

virtual double SDRFrontEndConfigurations::getRxSamplingRate ( )

pure virtual

Get the current Rx sampling rate.

Returns: double Current Rx sampling rate in Hz

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::getSamplingRate().

◆ getTimeSource()

virtual std::string SDRFrontEndConfigurations::getTimeSource ( )

pure virtual

Get the current time source.

Returns: std::string Name of current time source

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getTimeSources()

virtual std::vector< std::string > SDRFrontEndConfigurations::getTimeSources ( )

pure virtual

Get list of current time sources.

Returns: std::vector<std::string> List of current time source names

Implemented in AbstractSDRFrontEnd.

◆ getTransferType()

virtual SDRFrontEndTransferType SDRFrontEndConfigurations::getTransferType ( ) const

pure virtual

Get the current transfer type.

Returns: SDRFrontEndTransferType Current transfer type

Implemented in AbstractSDRFrontEnd.

◆ getTxAntenna()

virtual std::string SDRFrontEndConfigurations::getTxAntenna ( )

pure virtual

Get the current Tx antenna.

Returns: std::string Name of current Tx antenna

Implemented in AbstractSDRFrontEnd.

◆ getTxAntennas()

virtual std::vector< std::string > SDRFrontEndConfigurations::getTxAntennas ( )

pure virtual

Get list of available Tx antennas.

Returns: std::vector<std::string> List of available Tx antenna names

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ getTxCarrierFrequencies()

virtual std::vector< double > SDRFrontEndConfigurations::getTxCarrierFrequencies ( )

pure virtual

Get carrier frequencies for Tx channels.

Returns: std::vector<double> Vector of current Tx carrier frequencies

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::getCarrierFrequency().

◆ getTxSamplingRate()

virtual double SDRFrontEndConfigurations::getTxSamplingRate ( )

pure virtual

Get the current Tx sampling rate.

Returns: double Current Tx sampling rate in Hz

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::getSamplingRate(), AbstractSDRFrontEnd::transmit(), and AbstractSDRFrontEnd::transmitFramesInBatch().

◆ initializeSDR()

virtual void SDRFrontEndConfigurations::initializeSDR ( )

pure virtual

Initialize the SDR hardware.

◆ setAGC()

virtual void SDRFrontEndConfigurations::setAGC ( bool enableAGC )

pure virtual

Enable or disable AGC.

Parameters

enableAGC True to enable AGC, false to disable

Implemented in VirtualSDRFrontEnd.

◆ setClockSource()

virtual void SDRFrontEndConfigurations::setClockSource ( const std::string & clockSource )

pure virtual

Set the clock source.

Parameters

clockSource Name of desired clock source

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ setClockSources()

virtual void SDRFrontEndConfigurations::setClockSources ( const std::vector< std::string > & clockSources )

pure virtual

Set clock sources for multiple motherboards.

Parameters

clockSources Vector of clock source names for each motherboard

Implemented in AbstractSDRFrontEnd.

◆ setFilterBandwidth()

virtual void SDRFrontEndConfigurations::setFilterBandwidth ( double bw )

pure virtual

Set the filter bandwidth.

Parameters

bw	Desired filter bandwidth in Hz

Implemented in VirtualSDRFrontEnd, and AbstractSDRFrontEnd.

◆ setMasterClockRate()

virtual void SDRFrontEndConfigurations::setMasterClockRate ( double masterClockRate )

pure virtual

Set the master clock rate.

Parameters

masterClockRate Desired master clock rate in Hz

Implemented in VirtualSDRFrontEnd, and AbstractSDRFrontEnd.

◆ setNumThreads4RxDecoding()

virtual void SDRFrontEndConfigurations::setNumThreads4RxDecoding ( uint8_t numThreads )

pure virtual

Set the number of threads for Rx decoding.

Parameters

numThreads Number of threads to use

Implemented in AbstractSDRFrontEnd.

◆ setPinelineConfig()

virtual void SDRFrontEndConfigurations::setPinelineConfig ( std::vector< PipelineConfig > cfgs )

pure virtual

Implemented in AbstractSDRFrontEnd.

◆ setRxAntenna()

virtual void SDRFrontEndConfigurations::setRxAntenna ( const std::string & rxAnt )

pure virtual

Set the Rx antenna.

Parameters

rxAnt Name of desired Rx antenna

Implemented in AbstractSDRFrontEnd.

◆ setRxAntennas()

virtual void SDRFrontEndConfigurations::setRxAntennas ( const std::vector< std::string > & rxAnts )

pure virtual

Set antennas for all Rx chains.

Parameters

rxAnts Vector of antenna names for each Rx chain

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ setRxCarrierFrequencies()

virtual void SDRFrontEndConfigurations::setRxCarrierFrequencies ( std::vector< double > carrierFreqs )

pure virtual

Set carrier frequencies for Rx channels.

Parameters

carrierFreqs Vector of carrier frequencies for each Rx channel

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::setCarrierFrequency().

◆ setRxPipelineChannels()

virtual void SDRFrontEndConfigurations::setRxPipelineChannels ( std::vector< std::vector< size_t > > PipelineChannels )

pure virtual

Implemented in AbstractSDRFrontEnd.

◆ setRxSamplingRate()

virtual void SDRFrontEndConfigurations::setRxSamplingRate ( double rxRate )

pure virtual

Set the Rx sampling rate.

Parameters

rxRate Desired Rx sampling rate in Hz

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::setSamplingRate().

◆ setTimeSource()

virtual void SDRFrontEndConfigurations::setTimeSource ( const std::string & timeSource )

pure virtual

Set the time source.

Parameters

timeSource Name of desired time source

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ setTimeSources()

virtual void SDRFrontEndConfigurations::setTimeSources ( const std::vector< std::string > & timeSources )

pure virtual

Set time sources for multiple motherboards.

Parameters

timeSources Vector of time source names for each motherboard

Implemented in AbstractSDRFrontEnd.

◆ setTransferType()

virtual void SDRFrontEndConfigurations::setTransferType ( SDRFrontEndTransferType transferType )

pure virtual

Set the transfer type.

Parameters

transferType Desired transfer type

Implemented in AbstractSDRFrontEnd.

◆ setTxAntenna()

virtual void SDRFrontEndConfigurations::setTxAntenna ( const std::string & txAnt )

pure virtual

Set the Tx antenna.

Parameters

txAnt Name of desired Tx antenna

Implemented in AbstractSDRFrontEnd.

◆ setTxAntennas()

virtual void SDRFrontEndConfigurations::setTxAntennas ( const std::vector< std::string > & txAnts )

pure virtual

Set antennas for all Tx chains.

Parameters

txAnts Vector of antenna names for each Tx chain

Implemented in AbstractSDRFrontEnd, and VirtualSDRFrontEnd.

◆ setTxCarrierFrequencies()

virtual void SDRFrontEndConfigurations::setTxCarrierFrequencies ( std::vector< double > carrierFreqs )

pure virtual

Set carrier frequencies for Tx channels.

Parameters

carrierFreqs Vector of carrier frequencies for each Tx channel

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::setCarrierFrequency().

◆ setTxSamplingRate()

virtual void SDRFrontEndConfigurations::setTxSamplingRate ( double txRate )

pure virtual

Set the Tx sampling rate.

Parameters

txRate Desired Tx sampling rate in Hz

Implemented in VirtualSDRFrontEnd.

Referenced by AbstractSDRFrontEnd::setSamplingRate().

◆ skipMPDUDecoding4HESUHighDopplerFrame()

virtual void SDRFrontEndConfigurations::skipMPDUDecoding4HESUHighDopplerFrame ( bool skipDataDecoding )

pure virtual

Set whether to skip MPDU decoding for HE-SU high Doppler frames.

Parameters

skipDataDecoding True to skip decoding, false otherwise

◆ supportAGC()

virtual bool SDRFrontEndConfigurations::supportAGC ( )

pure virtual

Check if AGC is supported.

Returns: bool True if AGC is supported, false otherwise

Implemented in VirtualSDRFrontEnd.

◆ userSpecifiedRxChannels()

virtual const std::vector< size_t > & SDRFrontEndConfigurations::userSpecifiedRxChannels ( ) const

pure virtual

Get the list of user-specified Rx channels.

Returns: const std::vector<size_t>& List of Rx channel indices

Implemented in AbstractSDRFrontEnd.

◆ userSpecifiedTxChannels()

virtual const std::vector< size_t > & SDRFrontEndConfigurations::userSpecifiedTxChannels ( ) const

pure virtual

Get the list of user-specified Tx channels.

Returns: const std::vector<size_t>& List of Tx channel indices

Implemented in AbstractSDRFrontEnd.

The documentation for this class was generated from the following file:

headers/SDRFrontEndConfigurations.hxx

Public Member Functions

Detailed Description

Member Function Documentation

◆ getClockSource()

◆ getClockSources()

◆ getFilterBandwidth()

◆ getMasterClockRate()

◆ getPinelineConfig()

◆ getRxAntenna()

◆ getRxAntennas()

◆ getRxBufferDuration()

◆ getRxCarrierFrequencies()

◆ getRxPipelineChannels()

◆ getRxSamplingRate()

◆ getTimeSource()

◆ getTimeSources()

◆ getTransferType()

◆ getTxAntenna()

◆ getTxAntennas()

◆ getTxCarrierFrequencies()

◆ getTxSamplingRate()

◆ initializeSDR()

◆ setAGC()

◆ setClockSource()

◆ setClockSources()

◆ setFilterBandwidth()

◆ setMasterClockRate()

◆ setNumThreads4RxDecoding()

◆ setPinelineConfig()

◆ setRxAntenna()

◆ setRxAntennas()

◆ setRxCarrierFrequencies()

◆ setRxPipelineChannels()

◆ setRxSamplingRate()

◆ setTimeSource()

◆ setTimeSources()

◆ setTransferType()

◆ setTxAntenna()

◆ setTxAntennas()

◆ setTxCarrierFrequencies()

◆ setTxSamplingRate()

◆ skipMPDUDecoding4HESUHighDopplerFrame()

◆ supportAGC()

◆ userSpecifiedRxChannels()

◆ userSpecifiedTxChannels()
