Frontend interface for QCA9300 wireless network card. More...

#include <QCA9300FrontEnd.hxx>

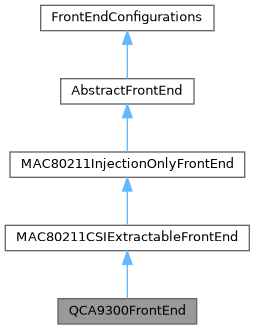

Inheritance diagram for QCA9300FrontEnd:

[legend]

Collaboration diagram for QCA9300FrontEnd:

[legend]

Public Member Functions
	QCA9300FrontEnd (const std::string &referredInterfaceName)
	Constructor.

virtual uint32_t	getChansel ()=0
	Get the current channel selection value.

virtual uint8_t	getBMode ()=0
	Get the current bandwidth mode.

virtual uint8_t	getTxNess ()=0
	Get the current transmission Ness value.

virtual uint32_t	getTSF ()=0
	Get the current TSF value.

virtual uint32_t	getPLLRate ()=0
	Get the current PLL rate.

virtual uint16_t	getPLLMultiplier ()=0
	Get the current PLL multiplier.

virtual uint8_t	getPLLRefDiv ()=0
	Get the current PLL reference divider value.

virtual uint8_t	getPLLClockSelect ()=0
	Get the current PLL clock select value.

virtual bool	getTxNotSounding ()=0
	Get the current transmission non-sounding state.

virtual AtherosCFTuningPolicy	getTuningPolicy ()=0
	Get the current carrier frequency tuning policy.

virtual void	setCarrierFrequency (double freq, enum AtherosCFTuningPolicy policy)=0
	Set carrier frequency and tuning policy.

virtual void	setChansel (uint32_t chansel)=0
	Set channel selection value.

virtual void	setBMode (uint8_t bmode)=0
	Set bandwidth mode.

virtual void	setTuningPolicy (enum AtherosCFTuningPolicy policy)=0
	Set tuning policy.

virtual void	setTxNess (uint8_t tx_Ness)=0
	Set transmission Ness value.

virtual void	setPLLValues (uint32_t multipler, uint8_t refDiv, uint8_t clockSelect)=0
	Set PLL values.

virtual void	setPLLMultiplier (uint32_t multipler)=0
	Set PLL multiplier.

virtual void	setPLLRefDiv (uint8_t refDiv)=0
	Set PLL reference divider value.

virtual void	setPLLClockSelect (uint8_t clockSelect)=0
	Set PLL clock select value.

virtual void	setTxNotSounding (bool not_sounding)=0
	Set transmission non-sounding state.

virtual void	setRxPA (uint8_t channel, bool manualMode, uint8_t LNA, uint8_t VGA, uint8_t MXR)=0
	Set receive power amplifier parameters.

virtual void	setRxAGC (bool enabled)=0
	Set receive automatic gain control.

virtual uint32_t	getRegisterValue (const uint32_t &address, const uint32_t mask=0xffffffff)=0
	Get register value.

virtual void	setRegisterValue (const uint32_t &address, const uint32_t value, const uint32_t mask)=0
	Set register value.

Public Member Functions inherited from MAC80211CSIExtractableFrontEnd
	MAC80211CSIExtractableFrontEnd (const std::string &referredInterfaceName)
	Constructor for CSI-capable front-end.

int	startRx () override
	Start the CSI reception service.

virtual void	setFrameTypeFilter (const std::vector< uint8_t > &frameTypes)
	Set frame type filter for CSI collection.

Public Member Functions inherited from MAC80211InjectionOnlyFrontEnd
int	startTx () override
	Start transmission service.

int	stopTx () override
	Stop transmission service.

int	startRx () override
	Start reception service.

int	stopRx () override
	Stop reception service.

int	transmit (const ModularPicoScenesTxFrame &frame) override
	Transmit a single frame.

int	transmitFramesInBatch (const std::vector< const ModularPicoScenesTxFrame * > &frames, uint32_t repeat) override
	Transmit multiple frames in batch mode.

int	transmitFramesInBatch (const std::vector< ModularPicoScenesTxFrame > &frames, uint32_t repeat) override
	Transmit multiple frames in batch mode (vector version)

	~MAC80211InjectionOnlyFrontEnd () override
	Destructor.

const std::string &	getDevId () const
	Get device interface identifier.

const std::string &	getMonId () const
	Get monitor interface identifier.

uint16_t	getPhyIdNumber () const
	Get physical interface number.

const std::string &	getPhyPath () const
	Get physical interface path.

const std::array< uint8_t, 6 > &	getMacAddressMon () const
	Get monitor interface MAC address.

const std::array< uint8_t, 6 > &	getMacAddressDev () const
	Get device interface MAC address.

std::tuple< double, double, double >	getChannelAndBandwidth () override
	Get current channel and bandwidth configuration.

int	setChannelAndBandwidth (double control, double bw, double center) override
	Set channel and bandwidth configuration.

int	setChannelAndBandwidth (std::optional< double > control, std::optional< double > bw, std::optional< double > center) override
	Set channel and bandwidth with optional parameters.

double	getCarrierFrequency () override
	Get carrier frequency.

void	setCarrierFrequency (double carrierFrequency) override
	Set carrier frequency.

double	getSamplingRate () override
	Get sampling rate.

void	setSamplingRate (double samplingRate) override
	Set sampling rate.

double	getControlChannelFrequency () override
	Get control channel frequency.

void	setControlChannelFrequency (double controlFrequency) override
	Set control channel frequency.

double	getRxChannelBandwidth () override
	Get receive channel bandwidth.

void	setRxChannelBandwidth (double rxcbw) override
	Set receive channel bandwidth.

double	getTxpower () override
	Get transmit power.

void	setTxpower (double txpower) override
	Set transmit power.

double	getRxGain () override
	Get receive gain.

void	setRxGain (double rxGain) override
	Set receive gain.

void	setRxGain (double rxGain, uint8_t channel) override
	Set receive gain for specific channel.

uint8_t	getTxChainMask () override
	Get transmit chain mask.

void	setTxChainMask (uint8_t txChainMask) override
	Set transmit chain mask.

uint8_t	getRxChainMask () override
	Get receive chain mask.

void	setRxChainMask (uint8_t rxChainMask) override
	Set receive chain mask.

std::vector< size_t >	getTxChannels () override
	Get active transmit channels.

void	setTxChannels (const std::vector< size_t > &txChannels) override
	Set active transmit channels.

std::vector< size_t >	getRxChannels () override
	Get active receive channels.

void	setRxChannels (const std::vector< size_t > &rxChannels) override
	Set active receive channels.

uint16_t	getChannelFlags () override
	Get channel flags.

ExtraInfo	buildExtraInfo () override
	Build extra information about the frontend.

const std::vector< double > &	getSystemSupportedFrequencies () const
	Get system supported frequencies.

bool	isMAC80211SupportedCarrierFrequency (double frequency) const
	Check if frequency is supported by MAC80211.

void	printStatus () override
	Print current frontend status.

Public Member Functions inherited from AbstractFrontEnd
	AbstractFrontEnd (const std::string &referredInterfaceName)
	Create AbstractFrontEnd object according to the user-specified frontend name `referredInterfaceName`.

virtual bool	isTxServiceStarted () const
	Returns whether Tx service is started.

virtual int	pauseTx ()
	Pause Tx service loop.

virtual int	resumeTx ()
	Resume Tx service loop.

template<int repeat = 1, typename ... Frames, typename = std::enable_if_t<(std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame *> &&...) \|\| (std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame> &&...) \|\| ((std::is_same_v<std::remove_cvref_t<Frames>, std::shared_ptr<ModularPicoScenesTxFrame>> \|\| std::is_same_v<std::remove_cvref_t<Frames>, std::unique_ptr<ModularPicoScenesTxFrame>>) &&...)>>
int	transmitFramesInBatch (Frames &&... frames)

virtual int	pauseRx ()
	Pause the Rx service loop, set rxPaused to true.

virtual int	resumeRx ()
	Resuase the paused Rx service loop, set rxPaused to false.

void	registerRxHandle (const std::function< void(const ModularPicoScenesRxFrame &)> &rxHandle)
	Register a handler for the received ModularPicoScenesRxFrame frames.

const std::string &	getReferredInterfaceName () const
	Get the user-specified frontend name.

void	setReferredInterfaceName (const std::string &name)
	Set the user-specified frontend name.

const std::string &	getPhyId () const
	Return the PhyId for NIC frontend. This is a undefined behavior for SDR frontend.

PicoScenesDeviceType	getFrontEndType () const
	Return the PicoScenesDeviceType of this frontend.

PicoScenesDeviceSubtype	getFrontEndSubtype () const
	Return the PicoScenesDeviceType subtype of this frontend.

const std::array< uint8_t, 6 > &	getMacAddressPhy () const
	Return the MAC address of this frontend. For SDR frontend, this method should generate a pseudo-MAC address.

PicoScenesFrameTxParameters &	getUserSpecifiedTxParameters ()

ModularPicoScenesTxFrame	initializeTxFrame () override

virtual	~AbstractFrontEnd ()=default

Public Member Functions inherited from FrontEndConfigurations
virtual	~FrontEndConfigurations ()=default

virtual bool	isHardwareSupportedPreset (const std::string &presetName)=0
	Check if a preset configuration is supported by the hardware.

virtual void	applyPreset (const std::string &presetName, bool skipChangeRate=false)=0
	Apply a preset configuration to the frontend hardware.

void	setNumTxChannels (const uint8_t numTxChannels)
	Set the number of Tx channels, the active channels start from 0.

void	setNumRxChannels (const uint8_t numRxChannels)
	Set the number of Rx channels, the active channels start from 0.

std::vector< size_t >	getAllChannels ()

virtual void	setSourceMACAddressFilter (const std::vector< std::array< uint8_t, 6 > > &addresses)
	Set the SOURCE addresses that will be blocked by the frontend.

virtual void	setDestinationMACAddressFilter (const std::vector< std::array< uint8_t, 6 > > &addresses)
	Set the DESTINATION addresses that will be blocked by the frontend.

virtual uint16_t	getAndIncreasePerFrontEndTxFrameSequenceNumber ()

Static Public Member Functions
static std::shared_ptr< QCA9300FrontEnd >	getInstance (const std::string &referredInterfaceName)
	Get an instance of QCA9300FrontEnd.

Static Public Member Functions inherited from MAC80211InjectionOnlyFrontEnd
static bool	isMAC80211CompatibleFrontEnd (const std::string &referredInterfaceName)
	Check if a given interface is compatible with MAC80211.

Additional Inherited Members
Protected Member Functions inherited from MAC80211CSIExtractableFrontEnd
virtual void	startCSIExtractionAndParsingLoop ()=0
	Start the CSI extraction and parsing loop.

Protected Member Functions inherited from MAC80211InjectionOnlyFrontEnd
	MAC80211InjectionOnlyFrontEnd (const std::string &referredName)
	Protected constructor.

Protected Attributes inherited from MAC80211CSIExtractableFrontEnd
int	csiPathPointer {}
	< File descriptor for CSI data port

Protected Attributes inherited from MAC80211InjectionOnlyFrontEnd
std::string	devId
	Device interface identifier.

std::string	monId
	Monitor interface identifier.

uint16_t	phyIdNumber = 0
	Physical interface number.

std::string	phyPath
	Path to physical interface.

std::shared_ptr< uint8_t >	txContext
	Transmission context.

std::array< uint8_t, 6 >	macAddress_MON {0, 0, 0, 0, 0, 0}
	Monitor interface MAC address.

std::array< uint8_t, 6 >	macAddress_DEV {0, 0, 0, 0, 0, 0}
	Device interface MAC address.

std::vector< double >	systemSupportedFrequencies
	List of supported frequencies.

Protected Attributes inherited from AbstractFrontEnd
std::string	referredInterfaceName
	the user specified frontend name

std::string	phyId
	phyId

std::array< uint8_t, 6 >	macAddress_PHY {0, 0, 0, 0, 0, 0}
	macAddress of the frontend

PicoScenesDeviceType	frontEndType = PicoScenesDeviceType::Unknown
	frontend type

PicoScenesDeviceSubtype	frontEndSubtype = PicoScenesDeviceSubtype::Unknown
	frontend subtype

bool	txServiceStarted = false
	indicate whether Tx service is running

PicoScenesFrameTxParameters	userSpecifiedTxParameters
	user-specified Tx parameters

std::mutex	txPauseMutex

std::condition_variable	txPauseCV

bool	txPaused = false
	indicate whether Tx serivce is paused

std::function< void(const ModularPicoScenesRxFrame &)>	rxHandle = nullptr
	The Rx frame handler.

bool	rxPaused = false
	indicate whether Rx service loop is paused

bool	rxServiceStarted = false
	indicate whether Rx service loop is running

Protected Attributes inherited from FrontEndConfigurations
std::vector< std::array< uint8_t, 6 > >	sourceAddressFilterList
	the source addresses to be filtered

std::vector< std::array< uint8_t, 6 > >	destinationAddressFilterList
	the destination addressed to be filtered

uint16_t	currentTxSequenceNumber {0}
	current Tx sequence number

Detailed Description

Frontend interface for QCA9300 wireless network card.

This class provides access to specific features of the QCA9300 wireless card, including channel selection, PLL configuration, transmission parameter settings, etc. It inherits from MAC80211CSIExtractableFrontEnd, supporting CSI extraction functionality.

QCA9300 is a wireless card supporting 802.11n, with configurable PLL, channel selection, and other RF parameters. This class provides a software control interface for these hardware features.

Definition at line 20 of file QCA9300FrontEnd.hxx.

Constructor & Destructor Documentation

◆ QCA9300FrontEnd()

QCA9300FrontEnd::QCA9300FrontEnd ( const std::string & referredInterfaceName )

explicit

Constructor.

Parameters

referredInterfaceName Name of the network interface

Initializes a QCA9300FrontEnd object. Throws an exception if the specified interface is not a QCA9300 device.

Member Function Documentation

◆ getBMode()

virtual uint8_t QCA9300FrontEnd::getBMode ( )

pure virtual

Get the current bandwidth mode.

Returns: uint8_t Current bandwidth mode

Returns the current bandwidth mode set in QCA9300, used to determine the channel bandwidth.

◆ getChansel()

virtual uint32_t QCA9300FrontEnd::getChansel ( )

pure virtual

Get the current channel selection value.

Returns: uint32_t Current channel selection value

Returns the current channel selection value set in QCA9300, used to determine the operating frequency.

◆ getInstance()

static std::shared_ptr< QCA9300FrontEnd > QCA9300FrontEnd::getInstance ( const std::string & referredInterfaceName )

static

Get an instance of QCA9300FrontEnd.

Parameters

referredInterfaceName Name of the network interface

Returns: std::shared_ptr<QCA9300FrontEnd> Smart pointer to QCA9300FrontEnd instance

Uses the singleton pattern to get an instance of QCA9300FrontEnd. Returns nullptr if the specified interface is not a QCA9300 device.

◆ getPLLClockSelect()

virtual uint8_t QCA9300FrontEnd::getPLLClockSelect ( )

pure virtual

Get the current PLL clock select value.

Returns: uint8_t Current PLL clock select value

Returns the current PLL clock select value set in QCA9300, used to calculate the PLL rate.

◆ getPLLMultiplier()

virtual uint16_t QCA9300FrontEnd::getPLLMultiplier ( )

pure virtual

Get the current PLL multiplier.

Returns: uint16_t Current PLL multiplier

Returns the current PLL multiplier set in QCA9300, used to calculate the PLL rate.

◆ getPLLRate()

virtual uint32_t QCA9300FrontEnd::getPLLRate ( )

pure virtual

Get the current PLL rate.

Returns: uint32_t Current PLL rate

Returns the current Phase-Locked Loop (PLL) rate set in QCA9300, used to determine the sampling rate.

◆ getPLLRefDiv()

virtual uint8_t QCA9300FrontEnd::getPLLRefDiv ( )

pure virtual

Get the current PLL reference divider value.

Returns: uint8_t Current PLL reference divider value

Returns the current PLL reference divider value set in QCA9300, used to calculate the PLL rate.

◆ getRegisterValue()

virtual uint32_t QCA9300FrontEnd::getRegisterValue	(	const uint32_t &	address,
		const uint32_t	mask = `0xffffffff`
	)

pure virtual

Get register value.

Parameters

address	Register address
mask	Mask, defaults to 0xffffffff

Returns: uint32_t Register value

Reads the register value at the specified address in QCA9300, and applies the mask.

◆ getTSF()

virtual uint32_t QCA9300FrontEnd::getTSF ( )

pure virtual

Get the current TSF value.

Returns: uint32_t Current TSF value

Returns the current Time Synchronization Function (TSF) value in QCA9300, used for time synchronization.

◆ getTuningPolicy()

virtual AtherosCFTuningPolicy QCA9300FrontEnd::getTuningPolicy ( )

pure virtual

Get the current carrier frequency tuning policy.

Returns: AtherosCFTuningPolicy Current carrier frequency tuning policy

Returns the current carrier frequency tuning policy used by QCA9300.

◆ getTxNess()

virtual uint8_t QCA9300FrontEnd::getTxNess ( )

pure virtual

Get the current transmission Ness value.

Returns: uint8_t Current transmission Ness value

Returns the current transmission Ness value set in QCA9300, used to control transmission parameters.

◆ getTxNotSounding()

virtual bool QCA9300FrontEnd::getTxNotSounding ( )

pure virtual

Get the current transmission non-sounding state.

Returns: bool Current transmission non-sounding state

Returns whether QCA9300 is currently set to non-sounding mode.

◆ setBMode()

virtual void QCA9300FrontEnd::setBMode ( uint8_t bmode )

pure virtual

Set bandwidth mode.

Parameters

bmode Bandwidth mode to set

Sets the bandwidth mode for QCA9300, used to determine the channel bandwidth.

◆ setCarrierFrequency()

virtual void QCA9300FrontEnd::setCarrierFrequency	(	double	freq,
		enum AtherosCFTuningPolicy	policy
	)

pure virtual

Set carrier frequency and tuning policy.

Parameters

freq	Carrier frequency to set (Hz)
policy	Tuning policy to use

Sets the carrier frequency and tuning policy for QCA9300, used to determine the operating frequency and tuning method.

◆ setChansel()

virtual void QCA9300FrontEnd::setChansel ( uint32_t chansel )

pure virtual

Set channel selection value.

Parameters

chansel Channel selection value to set

Sets the channel selection value for QCA9300, used to determine the operating frequency.

◆ setPLLClockSelect()

virtual void QCA9300FrontEnd::setPLLClockSelect ( uint8_t clockSelect )

pure virtual

Set PLL clock select value.

Parameters

clockSelect PLL clock select value to set

Sets the PLL clock select value for QCA9300, used to calculate the PLL rate.

◆ setPLLMultiplier()

virtual void QCA9300FrontEnd::setPLLMultiplier ( uint32_t multipler )

pure virtual

Set PLL multiplier.

Parameters

multipler PLL multiplier to set

Sets the PLL multiplier for QCA9300, used to calculate the PLL rate.

◆ setPLLRefDiv()

virtual void QCA9300FrontEnd::setPLLRefDiv ( uint8_t refDiv )

pure virtual

Set PLL reference divider value.

Parameters

refDiv PLL reference divider value to set

Sets the PLL reference divider value for QCA9300, used to calculate the PLL rate.

◆ setPLLValues()

virtual void QCA9300FrontEnd::setPLLValues	(	uint32_t	multipler,
		uint8_t	refDiv,
		uint8_t	clockSelect
	)

pure virtual

Set PLL values.

Parameters

multipler	PLL multiplier to set
refDiv	PLL reference divider value to set
clockSelect	PLL clock select value to set

Sets the PLL multiplier, reference divider value, and clock select value for QCA9300 in one operation, used to configure the PLL.

◆ setRegisterValue()

virtual void QCA9300FrontEnd::setRegisterValue	(	const uint32_t &	address,
		const uint32_t	value,
		const uint32_t	mask
	)

pure virtual

Set register value.

Parameters

address	Register address
value	Value to set
mask	Mask

Sets the register value at the specified address in QCA9300, only modifying the bits specified by the mask.

◆ setRxAGC()

virtual void QCA9300FrontEnd::setRxAGC ( bool enabled )

pure virtual

Set receive automatic gain control.

Parameters

enabled Whether to enable automatic gain control

Sets whether QCA9300 enables receive automatic gain control.

◆ setRxPA()

virtual void QCA9300FrontEnd::setRxPA	(	uint8_t	channel,
		bool	manualMode,
		uint8_t	LNA,
		uint8_t	VGA,
		uint8_t	MXR
	)

pure virtual

Set receive power amplifier parameters.

Parameters

channel	Channel number to set
manualMode	Whether to use manual mode
LNA	Low Noise Amplifier gain value
VGA	Variable Gain Amplifier gain value
MXR	Mixer gain value

Sets the receive power amplifier parameters for QCA9300, used to control receive gain.

◆ setTuningPolicy()

virtual void QCA9300FrontEnd::setTuningPolicy ( enum AtherosCFTuningPolicy policy )

pure virtual

Set tuning policy.

Parameters

policy Tuning policy to set

Sets the carrier frequency tuning policy for QCA9300.

◆ setTxNess()

virtual void QCA9300FrontEnd::setTxNess ( uint8_t tx_Ness )

pure virtual

Set transmission Ness value.

Parameters

tx_Ness Transmission Ness value to set

Sets the transmission Ness value for QCA9300, used to control transmission parameters.

◆ setTxNotSounding()

virtual void QCA9300FrontEnd::setTxNotSounding ( bool not_sounding )

pure virtual

Set transmission non-sounding state.

Parameters

not_sounding Whether to set to non-sounding mode

Sets whether QCA9300 uses non-sounding mode for transmission.

The documentation for this class was generated from the following file:

headers/QCA9300FrontEnd.hxx

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QCA9300FrontEnd()

Member Function Documentation

◆ getBMode()

◆ getChansel()

◆ getInstance()

◆ getPLLClockSelect()

◆ getPLLMultiplier()

◆ getPLLRate()

◆ getPLLRefDiv()

◆ getRegisterValue()

◆ getTSF()

◆ getTuningPolicy()

◆ getTxNess()

◆ getTxNotSounding()

◆ setBMode()

◆ setCarrierFrequency()

◆ setChansel()

◆ setPLLClockSelect()

◆ setPLLMultiplier()

◆ setPLLRefDiv()

◆ setPLLValues()

◆ setRegisterValue()

◆ setRxAGC()

◆ setRxPA()

◆ setTuningPolicy()

◆ setTxNess()

◆ setTxNotSounding()
