Abstract base class for Network Interface Card (NIC) operations. More...

#include <AbstractNIC.hxx>

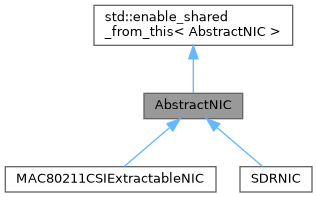

Inheritance diagram for AbstractNIC:

[legend]

Collaboration diagram for AbstractNIC:

Public Member Functions
virtual void	startTxService ()=0
	Start the transmission service.

virtual void	stopTxService ()=0
	Stop the transmission service.

virtual void	pauseTx ()=0
	Temporarily pause transmission.

virtual void	resumeTx ()=0
	Resume paused transmission.

virtual bool	isTxServiceStarted () const =0
	Check if transmission service is running.

virtual int	transmitPicoScenesFrame (const ModularPicoScenesTxFrame &frame)=0
	Transmit a single PicoScenes frame.

virtual int	transmitPicoScenesFrameSync (const ModularPicoScenesTxFrame &frame)=0
	Transmit a frame synchronously.

virtual int	transmitFramesInBatch (const std::vector< ModularPicoScenesTxFrame > &frames, uint16_t numRepeats)=0
	Transmit multiple frames in batch mode.

template<int repeat = 1, typename ... Frames, typename = std::enable_if_t<(std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame *> &&...) \|\| (std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame> &&...) \|\| ((std::is_same_v<std::remove_cvref_t<Frames>, std::shared_ptr<ModularPicoScenesTxFrame>> \|\| std::is_same_v<std::remove_cvref_t<Frames>, std::unique_ptr<ModularPicoScenesTxFrame>>) &&...)>>
int	transmitFramesInBatch (Frames &&... frames)
	Template method for batch transmission of frames.

virtual ModularPicoScenesTxFrame	initializeTxFrame ()
	Initialize a new transmission frame.

virtual void	startRxService ()=0
	Start the reception service.

virtual void	stopRxService ()=0
	Stop the reception service.

virtual void	pauseRx ()=0
	Temporarily pause reception.

virtual void	resumeRx ()=0
	Resume paused reception.

virtual bool	isRxServiceStarted () const =0
	Check if reception service is running.

virtual std::optional< ModularPicoScenesRxFrame >	syncRxConditionally (const std::function< bool(const ModularPicoScenesRxFrame &)> &condition, const std::chrono::milliseconds &maxWait_ms, std::optional< std::string > conditionaName=std::nullopt)=0
	Wait for a frame that matches specific conditions.

virtual std::optional< ModularPicoScenesRxFrame >	syncRxWaitTaskId (uint16_t taskid, uint32_t maxWait_ms)=0
	Wait for a frame with specific task ID.

virtual void	registerTaskIdHandler (uint16_t taskId, const std::function< bool(const ModularPicoScenesRxFrame &)> &handle)=0
	Register a handler for specific task ID.

virtual std::function< bool(const ModularPicoScenesRxFrame &)>	getHandlerForFrameType (uint8_t frameType)=0
	Get handler for specific frame type.

virtual void	unregisterTaskIdHandler (uint16_t taskId)=0
	Unregister handler for specific task ID.

virtual bool	checkTaskIdHandlerExist (uint16_t taskId)=0
	Check if handler exists for specific task ID.

virtual void	registerFrameTypeHandler (uint8_t frameType, const std::function< bool(const ModularPicoScenesRxFrame &)> &handle)=0
	Register handler for specific frame type.

virtual std::function< bool(const ModularPicoScenesRxFrame &)>	getHandlerForTaskId (uint16_t taskId)=0
	Get handler for specific task ID.

virtual void	unregisterFrameTypeHandler (uint8_t frameType)=0
	Unregister handler for specific frame type.

virtual bool	checkFrameTypeHandlerExist (uint8_t frameType)=0
	Check if handler exists for specific frame type.

virtual void	registerGeneralHandler (const std::string &handlerKeyName, const std::function< bool(const ModularPicoScenesRxFrame &)> &handle)=0
	Register a general handler.

virtual std::function< bool(const ModularPicoScenesRxFrame &)>	getGeneralHandler (const std::string &handlerKeyName)=0
	Get general handler by name.

virtual void	unregisterGeneralHandler (const std::string &handlerKeyName)=0
	Unregister general handler.

virtual bool	checkGeneralHandlerExist (const std::string &handlerKeyName)=0
	Check if general handler exists.

const std::string &	getReferredInterfaceName () const
	Get the interface name.

const std::string &	getPhyId () const
	Get the physical interface ID.

const std::shared_ptr< AbstractFrontEnd > &	getFrontEnd () const
	Get the front end interface.

virtual const PicoScenesFrameTxParameters &	getUserSpecifiedTxParameters () const =0
	This methods returns the PicoScenesFrameTxParameters object created by the user specified Tx parameters. .

virtual PicoScenesFrameTxParameters &	getUserSpecifiedTxParameters ()=0
	This methods returns the PicoScenesFrameTxParameters object created by the user specified Tx parameters. .

PicoScenesDeviceType	getDeviceType () const
	Get the device type.

std::shared_ptr< AbstractHALConfiguration >	getConfiguration () const
	Get the HAL configuration.

template<typename FrontEndT , class = std::enable_if_t<std::is_base_of_v<AbstractFrontEnd, FrontEndT>>>
std::shared_ptr< FrontEndT >	getTypedFrontEnd () const
	Get typed front end instance.

const std::shared_ptr< PicoScenesPluginManager > &	getPluginManager () const
	Get the plugin manager.

virtual void	installPlugins () const =0
	Install plugins for this NIC.

std::vector< std::shared_ptr< po::options_description > >	getAllNICOptions ()
	Get all NIC options.

Protected Member Functions
	AbstractNIC (const std::string &referredInterfaceName)
	Protected constructor.

Protected Attributes
std::string	referredInterfaceName
	Interface name reference.

std::string	phyId
	Physical interface identifier.

PicoScenesDeviceType	deviceType = PicoScenesDeviceType::Unknown
	Type of the device (NIC/SDR)

std::shared_ptr< AbstractHALConfiguration >	configuration
	Hardware abstraction layer configuration.

std::shared_ptr< AbstractFrontEnd >	frontEnd
	Frontend interface for hardware interaction.

std::shared_ptr< PicoScenesPluginManager >	pluginManager
	Plugin manager for extending functionality.

Detailed Description

Abstract base class for Network Interface Card (NIC) operations.

This class provides a common interface for different types of network interface cards, including both traditional Wi-Fi NICs and Software Defined Radio (SDR) devices. It manages transmission (Tx) and reception (Rx) services, frame handling, and plugin support.

Definition at line 28 of file AbstractNIC.hxx.

Constructor & Destructor Documentation

◆ AbstractNIC()

AbstractNIC::AbstractNIC ( const std::string & referredInterfaceName )

explicitprotected

Protected constructor.

Parameters

referredInterfaceName Name of the interface to manage

Member Function Documentation

◆ checkFrameTypeHandlerExist()

virtual bool AbstractNIC::checkFrameTypeHandlerExist ( uint8_t frameType )

pure virtual

Check if handler exists for specific frame type.

Parameters

frameType Frame type to check

Returns: true if handler exists, false otherwise

◆ checkGeneralHandlerExist()

virtual bool AbstractNIC::checkGeneralHandlerExist ( const std::string & handlerKeyName )

pure virtual

Check if general handler exists.

Parameters

handlerKeyName Name of the handler to check

Returns: true if handler exists, false otherwise

◆ checkTaskIdHandlerExist()

virtual bool AbstractNIC::checkTaskIdHandlerExist ( uint16_t taskId )

pure virtual

Check if handler exists for specific task ID.

Parameters

taskId Task ID to check

Returns: true if handler exists, false otherwise

◆ getAllNICOptions()

std::vector< std::shared_ptr< po::options_description > > AbstractNIC::getAllNICOptions ( )

Get all NIC options.

Returns: Vector of option descriptions

◆ getConfiguration()

std::shared_ptr< AbstractHALConfiguration > AbstractNIC::getConfiguration ( ) const

Get the HAL configuration.

Returns: Shared pointer to HAL configuration

◆ getDeviceType()

PicoScenesDeviceType AbstractNIC::getDeviceType ( ) const

Get the device type.

Returns: Device type enumeration value

◆ getFrontEnd()

const std::shared_ptr< AbstractFrontEnd > & AbstractNIC::getFrontEnd ( ) const

Get the front end interface.

Returns: Shared pointer to the front end interface

◆ getGeneralHandler()

virtual std::function< bool(const ModularPicoScenesRxFrame &)> AbstractNIC::getGeneralHandler ( const std::string & handlerKeyName )

pure virtual

Get general handler by name.

Parameters

handlerKeyName Name of the handler

Returns: Handler function

◆ getHandlerForFrameType()

virtual std::function< bool(const ModularPicoScenesRxFrame &)> AbstractNIC::getHandlerForFrameType ( uint8_t frameType )

pure virtual

Get handler for specific frame type.

Parameters

frameType Type of frame

Returns: Handler function for the specified frame type

◆ getHandlerForTaskId()

virtual std::function< bool(const ModularPicoScenesRxFrame &)> AbstractNIC::getHandlerForTaskId ( uint16_t taskId )

pure virtual

Get handler for specific task ID.

Parameters

taskId Task ID to get handler for

Returns: Handler function for the specified task ID

◆ getPhyId()

const std::string & AbstractNIC::getPhyId ( ) const

Get the physical interface ID.

Returns: Reference to the physical interface ID

◆ getPluginManager()

const std::shared_ptr< PicoScenesPluginManager > & AbstractNIC::getPluginManager ( ) const

Get the plugin manager.

Returns: Shared pointer to plugin manager

◆ getReferredInterfaceName()

const std::string & AbstractNIC::getReferredInterfaceName ( ) const

Get the interface name.

Returns: Reference to the interface name

Referenced by getTypedFrontEnd().

◆ getTypedFrontEnd()

template<typename FrontEndT , class = std::enable_if_t<std::is_base_of_v<AbstractFrontEnd, FrontEndT>>>

std::shared_ptr< FrontEndT > AbstractNIC::getTypedFrontEnd ( ) const

inline

Get typed front end instance.

Template Parameters

FrontEndT Type of front end to get

Returns: Shared pointer to typed front end instance

Definition at line 304 of file AbstractNIC.hxx.

References getReferredInterfaceName(), and FrontEndFactory::getTypedFrontEndInstance().

◆ getUserSpecifiedTxParameters() [1/2]

virtual const PicoScenesFrameTxParameters & AbstractNIC::getUserSpecifiedTxParameters ( ) const

pure virtual

This methods returns the PicoScenesFrameTxParameters object created by the user specified Tx parameters.
.

The user specified Tx parameters in CLI are parsed and interpreted into a PicoScenesFrameTxParameters object. To make this object available to upper-level plugins, it is store in the NIC/SDR's AbstractNIC object.
Plugin developers can access the user specified Tx parameters via this method.

◆ getUserSpecifiedTxParameters() [2/2]

virtual PicoScenesFrameTxParameters & AbstractNIC::getUserSpecifiedTxParameters ( )

pure virtual

This methods returns the PicoScenesFrameTxParameters object created by the user specified Tx parameters.
.

The user specified Tx parameters in CLI are parsed and interpreted into a PicoScenesFrameTxParameters object. To make this object available to upper-level plugins, it is store in the NIC/SDR's AbstractNIC object.
Plugin developers can access the user specified Tx parameters via this method.

◆ initializeTxFrame()

virtual ModularPicoScenesTxFrame AbstractNIC::initializeTxFrame ( )

inlinevirtual

Initialize a new transmission frame.

Returns: Initialized ModularPicoScenesTxFrame object

See also: AbstractFrontEnd::initializeTxFrame

Definition at line 108 of file AbstractNIC.hxx.

References frontEnd.

◆ installPlugins()

virtual void AbstractNIC::installPlugins ( ) const

pure virtual

Install plugins for this NIC.

◆ isRxServiceStarted()

virtual bool AbstractNIC::isRxServiceStarted ( ) const

pure virtual

Check if reception service is running.

Returns: true if service is active, false otherwise

◆ isTxServiceStarted()

virtual bool AbstractNIC::isTxServiceStarted ( ) const

pure virtual

Check if transmission service is running.

Returns: true if service is active, false otherwise

◆ pauseRx()

virtual void AbstractNIC::pauseRx ( )

pure virtual

Temporarily pause reception.

◆ pauseTx()

virtual void AbstractNIC::pauseTx ( )

pure virtual

Temporarily pause transmission.

◆ registerFrameTypeHandler()

virtual void AbstractNIC::registerFrameTypeHandler	(	uint8_t	frameType,
		const std::function< bool(const ModularPicoScenesRxFrame &)> &	handle
	)

pure virtual

Register handler for specific frame type.

Parameters

frameType	Type of frame
handle	Handler function

◆ registerGeneralHandler()

virtual void AbstractNIC::registerGeneralHandler	(	const std::string &	handlerKeyName,
		const std::function< bool(const ModularPicoScenesRxFrame &)> &	handle
	)

pure virtual

Register a general handler.

Parameters

handlerKeyName	Name of the handler
handle	Handler function

◆ registerTaskIdHandler()

virtual void AbstractNIC::registerTaskIdHandler	(	uint16_t	taskId,
		const std::function< bool(const ModularPicoScenesRxFrame &)> &	handle
	)

pure virtual

Register a handler for specific task ID.

Parameters

taskId	Task ID to handle
handle	Handler function

◆ resumeRx()

virtual void AbstractNIC::resumeRx ( )

pure virtual

Resume paused reception.

◆ resumeTx()

virtual void AbstractNIC::resumeTx ( )

pure virtual

Resume paused transmission.

◆ startRxService()

virtual void AbstractNIC::startRxService ( )

pure virtual

Start the reception service.

◆ startTxService()

virtual void AbstractNIC::startTxService ( )

pure virtual

Start the transmission service.

◆ stopRxService()

virtual void AbstractNIC::stopRxService ( )

pure virtual

Stop the reception service.

◆ stopTxService()

virtual void AbstractNIC::stopTxService ( )

pure virtual

Stop the transmission service.

◆ syncRxConditionally()

virtual std::optional< ModularPicoScenesRxFrame > AbstractNIC::syncRxConditionally	(	const std::function< bool(const ModularPicoScenesRxFrame &)> &	condition,
		const std::chrono::milliseconds &	maxWait_ms,
		std::optional< std::string >	conditionaName = `std::nullopt`
	)

pure virtual

Wait for a frame that matches specific conditions.

Parameters

condition	Function defining the matching condition
maxWait_ms	Maximum time to wait in milliseconds
conditionaName	Optional name for the condition

Returns: Optional containing the received frame if found

◆ syncRxWaitTaskId()

virtual std::optional< ModularPicoScenesRxFrame > AbstractNIC::syncRxWaitTaskId	(	uint16_t	taskid,
		uint32_t	maxWait_ms
	)

pure virtual

Wait for a frame with specific task ID.

Parameters

taskid	Task ID to wait for
maxWait_ms	Maximum time to wait in milliseconds

Returns: Optional containing the received frame if found

◆ transmitFramesInBatch() [1/2]

virtual int AbstractNIC::transmitFramesInBatch	(	const std::vector< ModularPicoScenesTxFrame > &	frames,
		uint16_t	numRepeats
	)

pure virtual

Transmit multiple frames in batch mode.

Parameters

frames	Vector of frames to transmit
numRepeats	Number of times to repeat the transmission

Returns: Status code indicating success or failure

Referenced by transmitFramesInBatch().

◆ transmitFramesInBatch() [2/2]

template<int repeat = 1, typename ... Frames, typename = std::enable_if_t<(std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame *> &&...) || (std::is_same_v<std::remove_cvref_t<Frames>, ModularPicoScenesTxFrame> &&...) || ((std::is_same_v<std::remove_cvref_t<Frames>, std::shared_ptr<ModularPicoScenesTxFrame>> || std::is_same_v<std::remove_cvref_t<Frames>, std::unique_ptr<ModularPicoScenesTxFrame>>) &&...)>>

int AbstractNIC::transmitFramesInBatch ( Frames &&... frames )

inline

Template method for batch transmission of frames.

Template Parameters

repeat	Number of times to repeat the transmission
Frames	Variable number of frame parameters

Parameters

frames Frames to transmit

Returns: Status code indicating success or failure

Definition at line 90 of file AbstractNIC.hxx.

References transmitFramesInBatch().

◆ transmitPicoScenesFrame()

virtual int AbstractNIC::transmitPicoScenesFrame ( const ModularPicoScenesTxFrame & frame )

pure virtual

Transmit a single PicoScenes frame.

Parameters

frame The frame to transmit

Returns: Status code indicating success or failure

◆ transmitPicoScenesFrameSync()

virtual int AbstractNIC::transmitPicoScenesFrameSync ( const ModularPicoScenesTxFrame & frame )

pure virtual

Transmit a frame synchronously.

Parameters

frame The frame to transmit

Returns: Status code indicating success or failure

◆ unregisterFrameTypeHandler()

virtual void AbstractNIC::unregisterFrameTypeHandler ( uint8_t frameType )

pure virtual

Unregister handler for specific frame type.

Parameters

frameType Frame type to unregister

◆ unregisterGeneralHandler()

virtual void AbstractNIC::unregisterGeneralHandler ( const std::string & handlerKeyName )

pure virtual

Unregister general handler.

Parameters

handlerKeyName Name of the handler to unregister

◆ unregisterTaskIdHandler()

virtual void AbstractNIC::unregisterTaskIdHandler ( uint16_t taskId )

pure virtual

Unregister handler for specific task ID.

Parameters

taskId Task ID to unregister

Member Data Documentation

◆ configuration

std::shared_ptr<AbstractHALConfiguration> AbstractNIC::configuration

protected

Hardware abstraction layer configuration.

Definition at line 344 of file AbstractNIC.hxx.

◆ deviceType

PicoScenesDeviceType AbstractNIC::deviceType = PicoScenesDeviceType::Unknown

protected

Type of the device (NIC/SDR)

Definition at line 339 of file AbstractNIC.hxx.

◆ frontEnd

std::shared_ptr<AbstractFrontEnd> AbstractNIC::frontEnd

protected

Frontend interface for hardware interaction.

Definition at line 349 of file AbstractNIC.hxx.

Referenced by initializeTxFrame().

◆ phyId

std::string AbstractNIC::phyId

protected

Physical interface identifier.

Definition at line 334 of file AbstractNIC.hxx.

◆ pluginManager

std::shared_ptr<PicoScenesPluginManager> AbstractNIC::pluginManager

protected

Plugin manager for extending functionality.

Definition at line 354 of file AbstractNIC.hxx.

◆ referredInterfaceName

std::string AbstractNIC::referredInterfaceName

protected

Interface name reference.

Definition at line 329 of file AbstractNIC.hxx.

The documentation for this class was generated from the following file:

headers/AbstractNIC.hxx

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AbstractNIC()

Member Function Documentation

◆ checkFrameTypeHandlerExist()

◆ checkGeneralHandlerExist()

◆ checkTaskIdHandlerExist()

◆ getAllNICOptions()

◆ getConfiguration()

◆ getDeviceType()

◆ getFrontEnd()

◆ getGeneralHandler()

◆ getHandlerForFrameType()

◆ getHandlerForTaskId()

◆ getPhyId()

◆ getPluginManager()

◆ getReferredInterfaceName()

◆ getTypedFrontEnd()

◆ getUserSpecifiedTxParameters() [1/2]

◆ getUserSpecifiedTxParameters() [2/2]

◆ initializeTxFrame()

◆ installPlugins()

◆ isRxServiceStarted()

◆ isTxServiceStarted()

◆ pauseRx()

◆ pauseTx()

◆ registerFrameTypeHandler()

◆ registerGeneralHandler()

◆ registerTaskIdHandler()

◆ resumeRx()

◆ resumeTx()

◆ startRxService()

◆ startTxService()

◆ stopRxService()

◆ stopTxService()

◆ syncRxConditionally()

◆ syncRxWaitTaskId()

◆ transmitFramesInBatch() [1/2]

◆ transmitFramesInBatch() [2/2]

◆ transmitPicoScenesFrame()

◆ transmitPicoScenesFrameSync()

◆ unregisterFrameTypeHandler()

◆ unregisterGeneralHandler()

◆ unregisterTaskIdHandler()

Member Data Documentation

◆ configuration

◆ deviceType

◆ frontEnd

◆ phyId

◆ pluginManager

◆ referredInterfaceName
